Benefits and Features
-
HIGHER PRODUCTIVITY

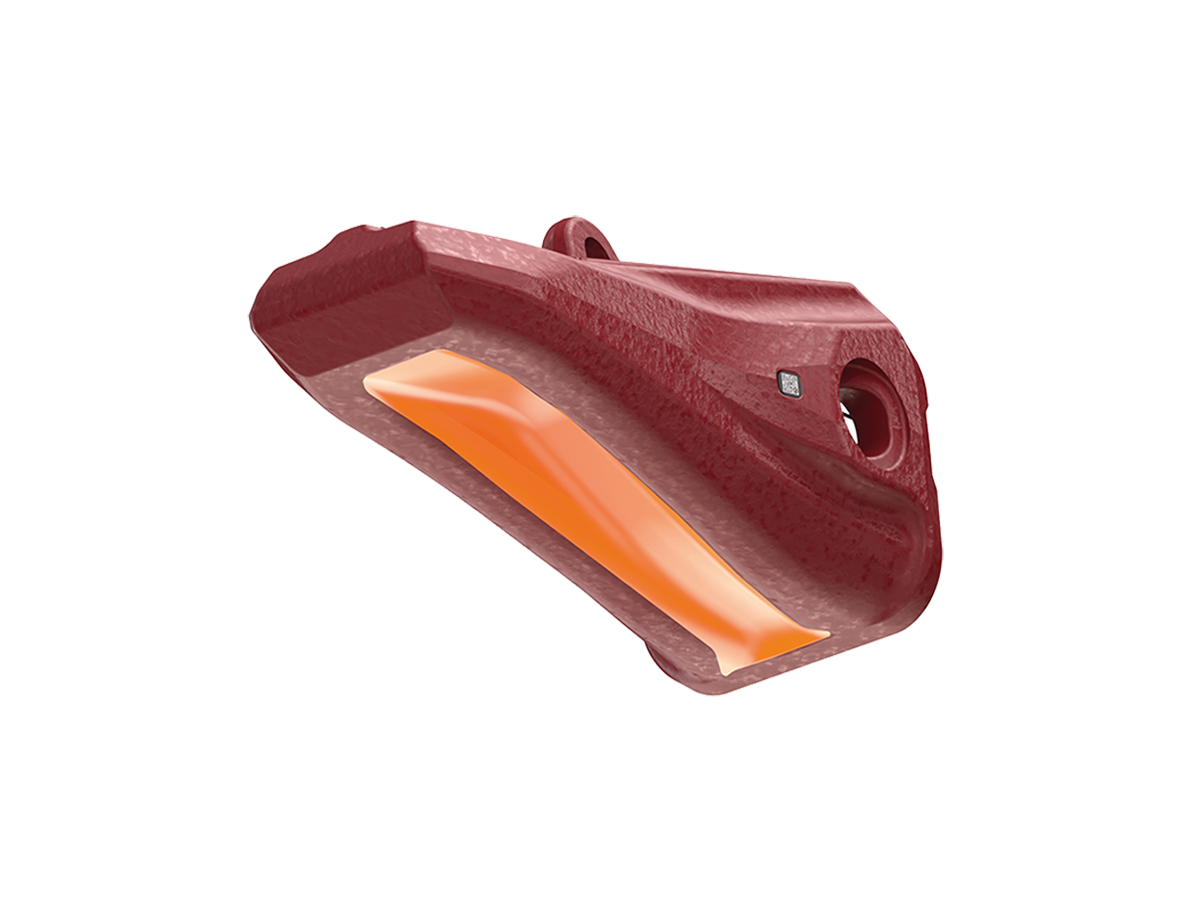

Slimmer, self-sharpening teeth with longer grooves along with a streamline wear cap and adapter design further improve the penetration capabilities optimizing your digging efficiency and reducing costs.
-
MAXIMUM RELIABILITY
The V-shaped fitting, an optimized locking, and reinforced adapter legs with weld-on bridges provide maximum stability and utmost resistance reducing plastic deformation and maximizing wear life.
-
SHORT AND SAFE DOWNTIME
Hammerless tooth and adapter lockings allow safe, quick, and easy change-outs always from the top. An additional auto-tightening effect of the adapter locking reduces the need for maintenance and increases reliability.
-
WIDE RANGE
The modular and comprehensive product range offers versatile solutions that cover 90% of all possible rope shovel dipper configurations. The adapter variants are compatible with WH10*, WH12*, and wide radius* lips.

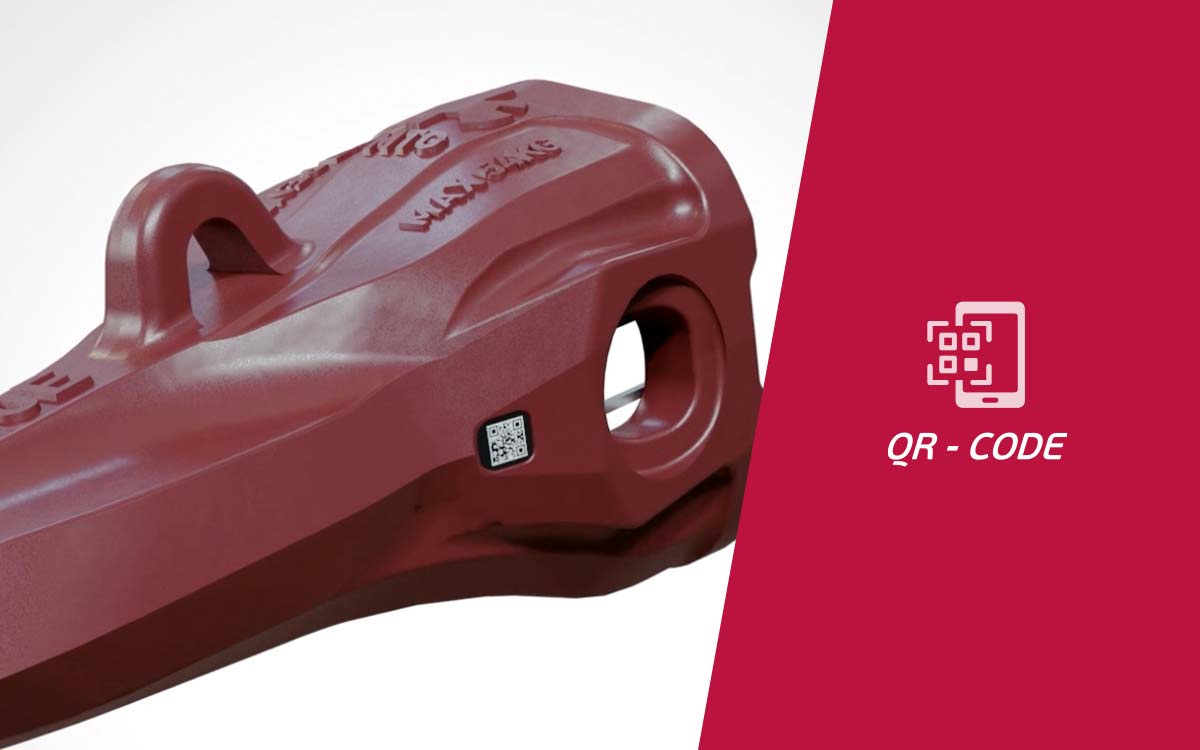

Up-to-date product information at your fingertips
With a QR-code on every VEEMET ROPE SHOVEL tooth, all up-to-date information is always and everywhere available at your fingertips. Simply scan the QR-code and access the product specific service materials about welding, assembly, etc.

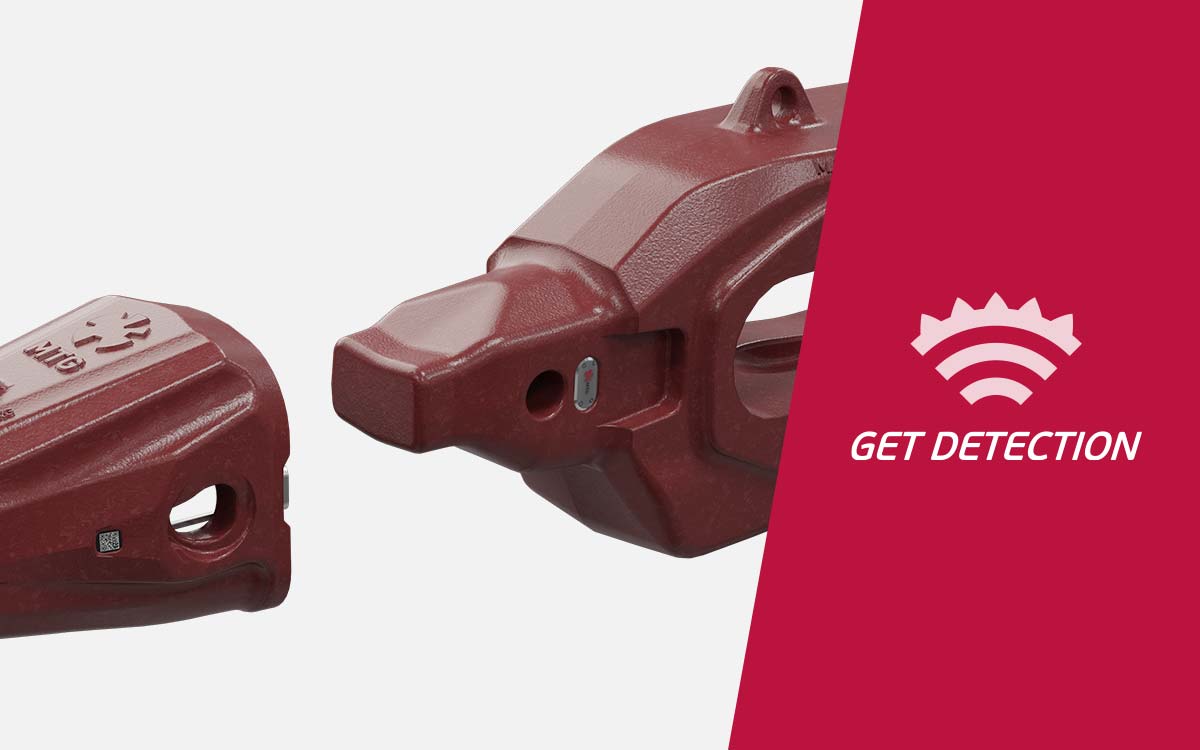

Compatible with GET DETECTION
VEEMET ROPE SHOVELS is ready to be equipped with MTG's GET DETECTION system. Real-time monitoring and immediate alarms in case of a GET detachment provide maximum safety, reduce unplanned downtime, and increase productivity.
-

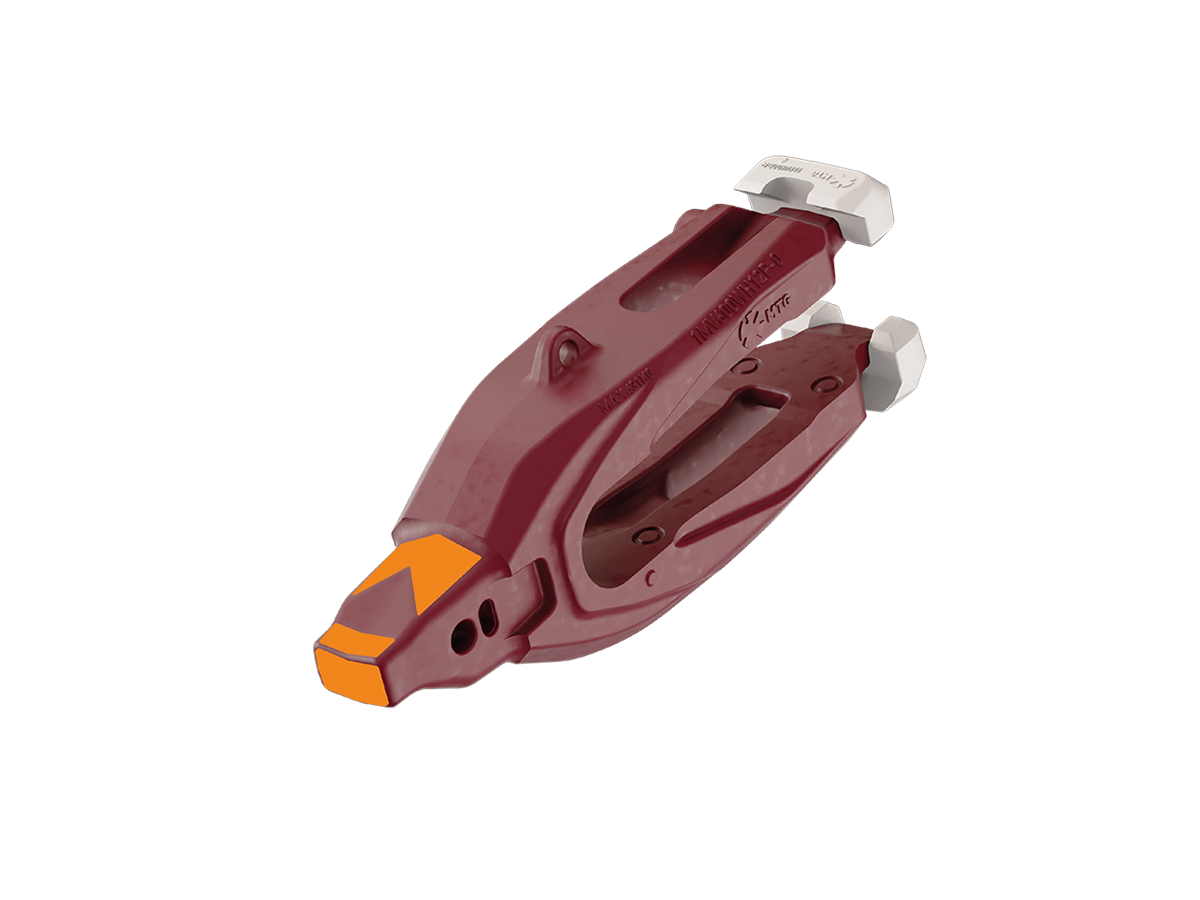

V-shaped fitting with improved stability
The V-shaped fitting and an 80% larger contact area increase the tooth system's stability and resistance against direct, inverse, lateral and torsional loads. This reduces plastic deformation of the adapter noses to maximize wear life of adapters and teeth. Additionally, the higher stability made it possible to design the noses 5% slimmer which contributes to better tooth penetration and productivity. -
-
-

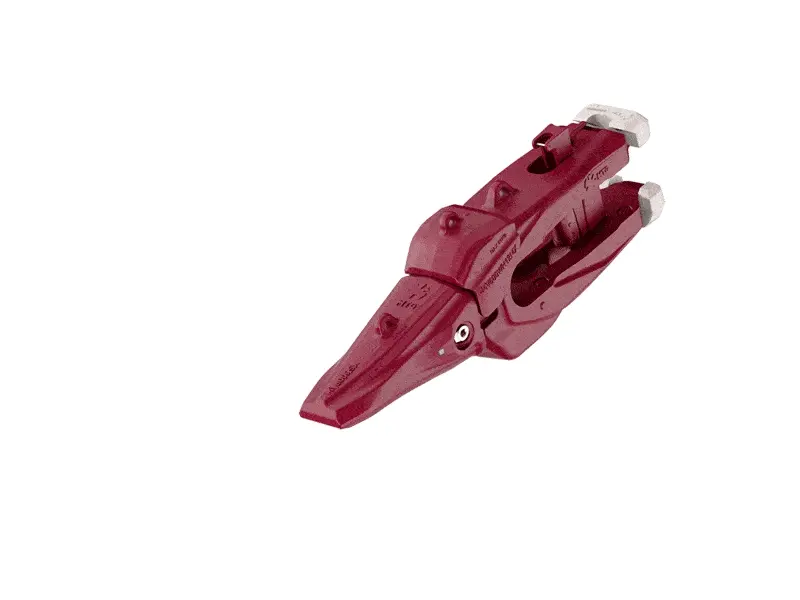

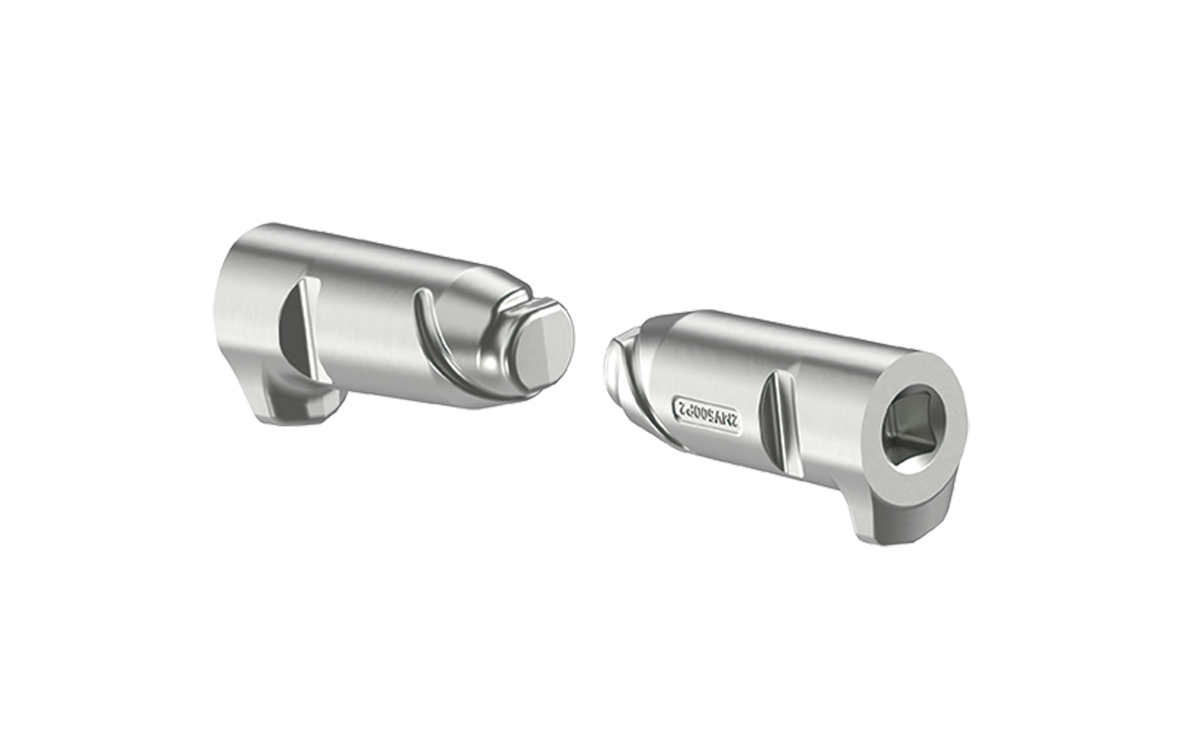

Quick & easy change-outs

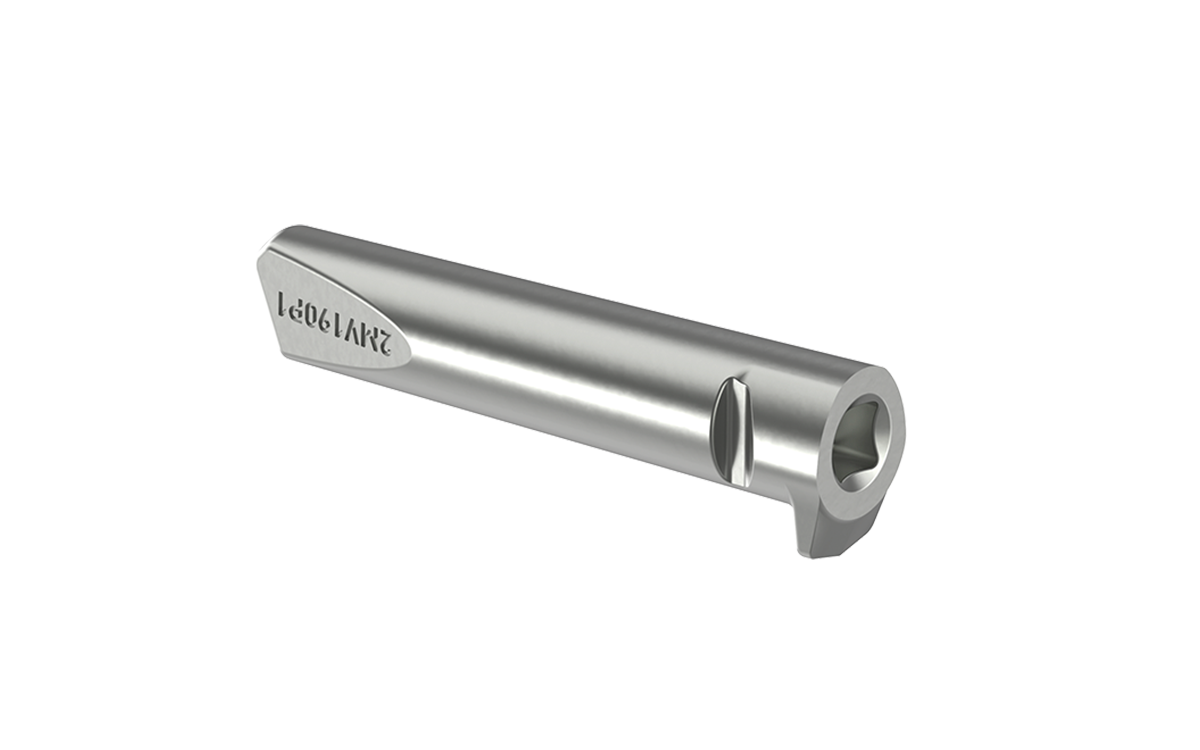

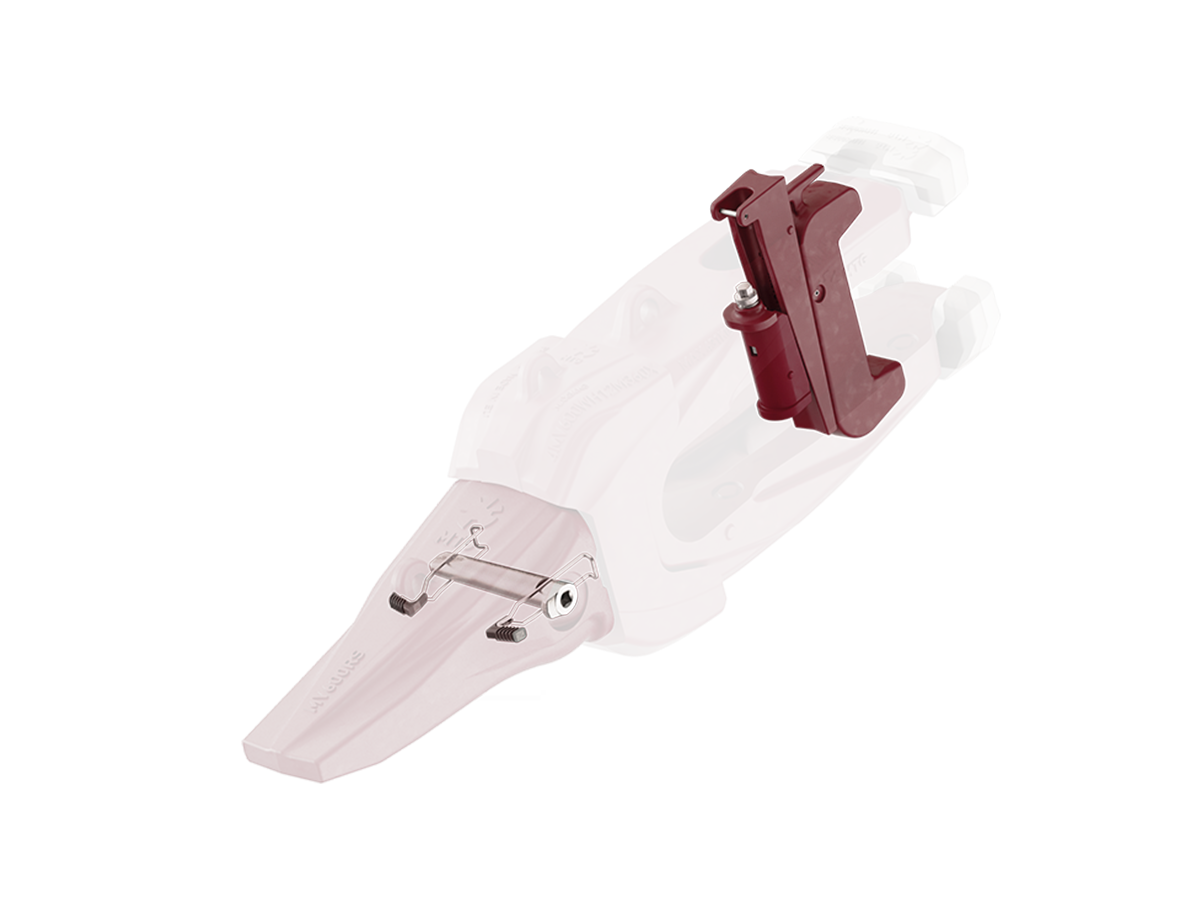

The optimized tooth locking allows safe, quick, and easy change-outs in only two steps: remove the pin with the removal tool to replace the tooth. Then press in the pin and you are ready to dig again. There will be an acoustic locking confirmation when the pin has completely been inserted.Additionally, the ratchet hammerless adapter locking allows safe and quick change-outs. All assembly and disassembly steps can safely be done from the top and an auto-tightening effect is eliminating maintenance for re-tightening.
-

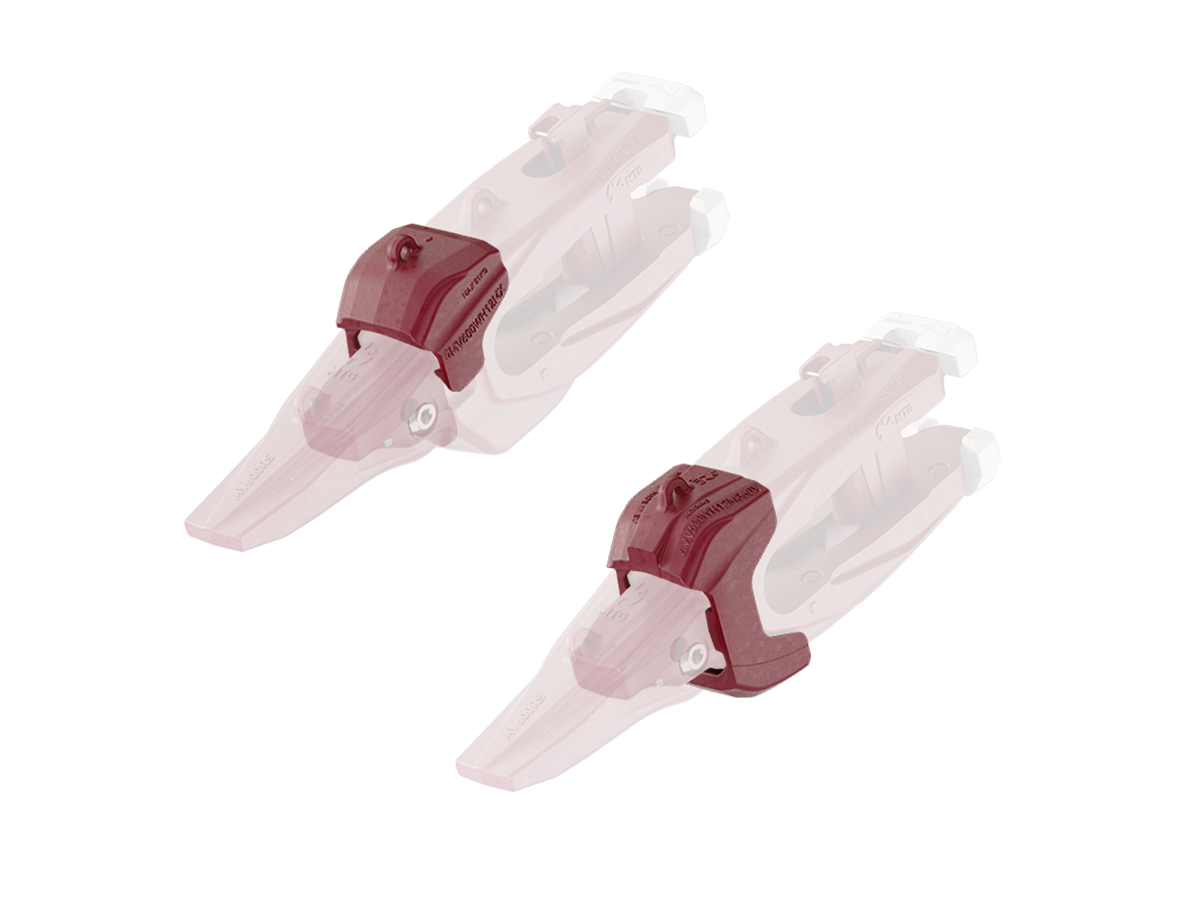

New all-around wear cap option
In addition to the regular wear caps for the upper leg, a brand-new wear cap is available that provide all-around protection for the upper and lower leg. The new 360 wear cap is especially designed for the penetration adapter in case additional wear protection is needed due to terrain with medium abrasion. The 360 wear cap is a cost-effective way to add more wear material and resistance and to extend the adapter's wear life.

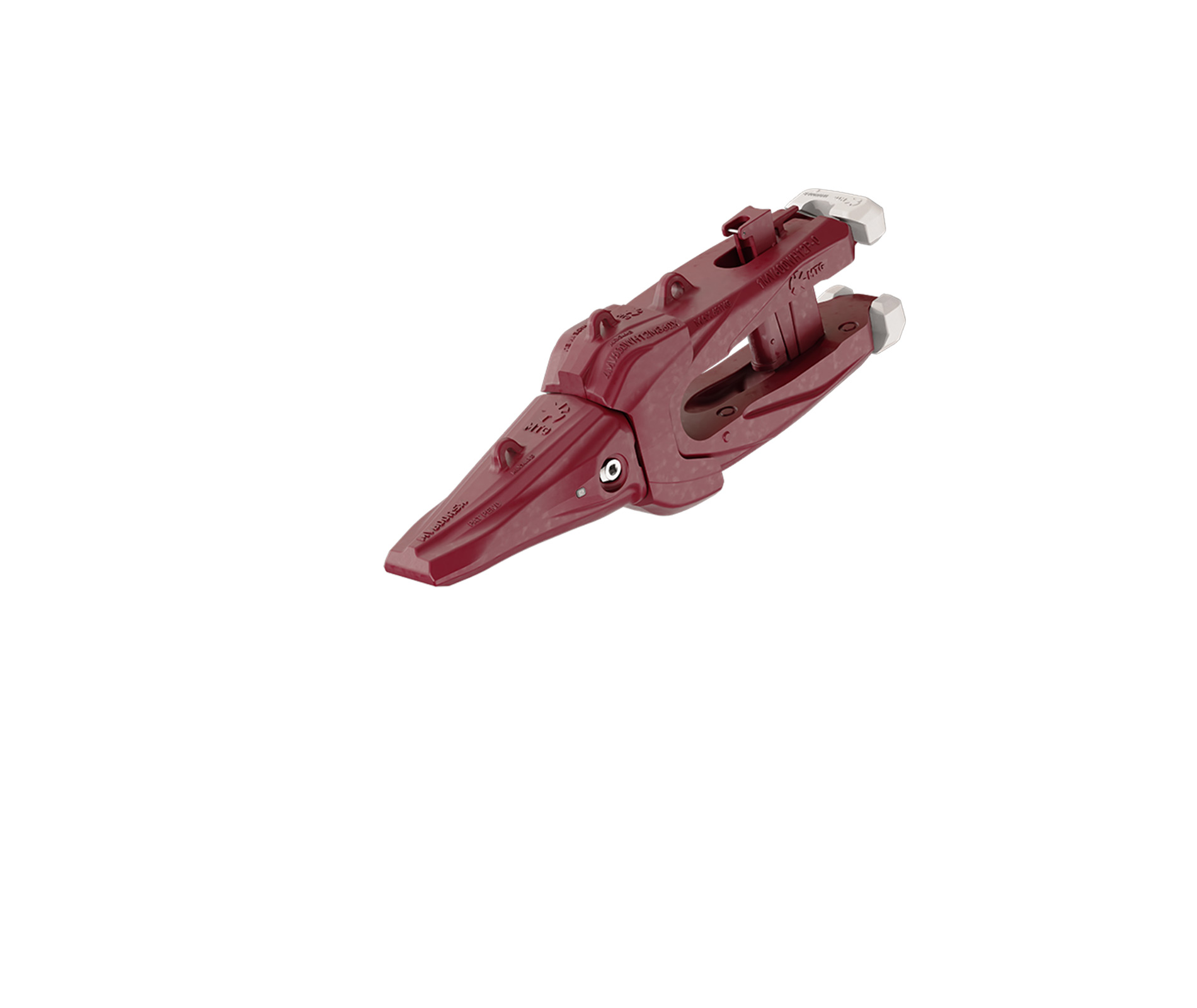

Discover the new generation of tooth system especially for Rope Shovels
-
Play Video

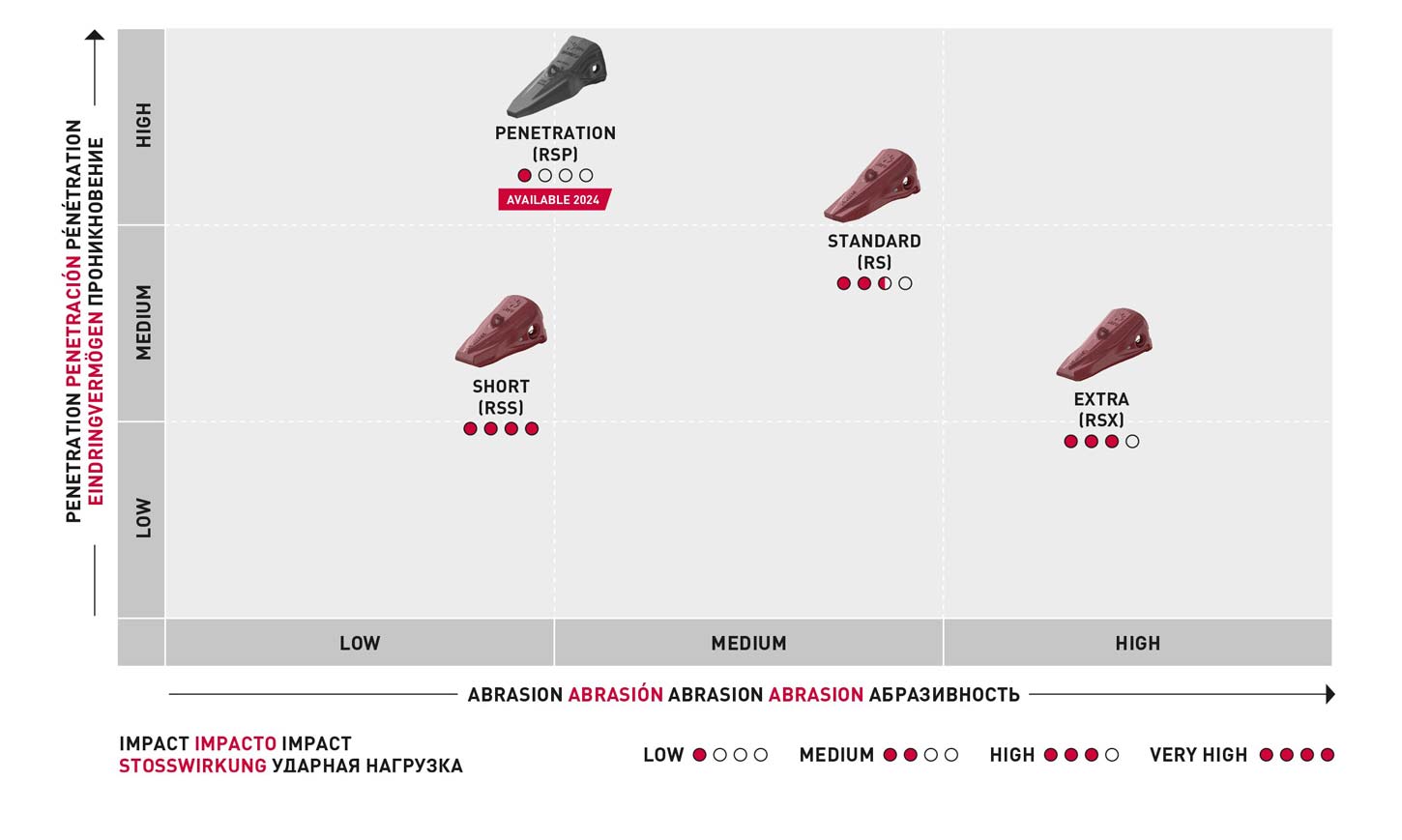

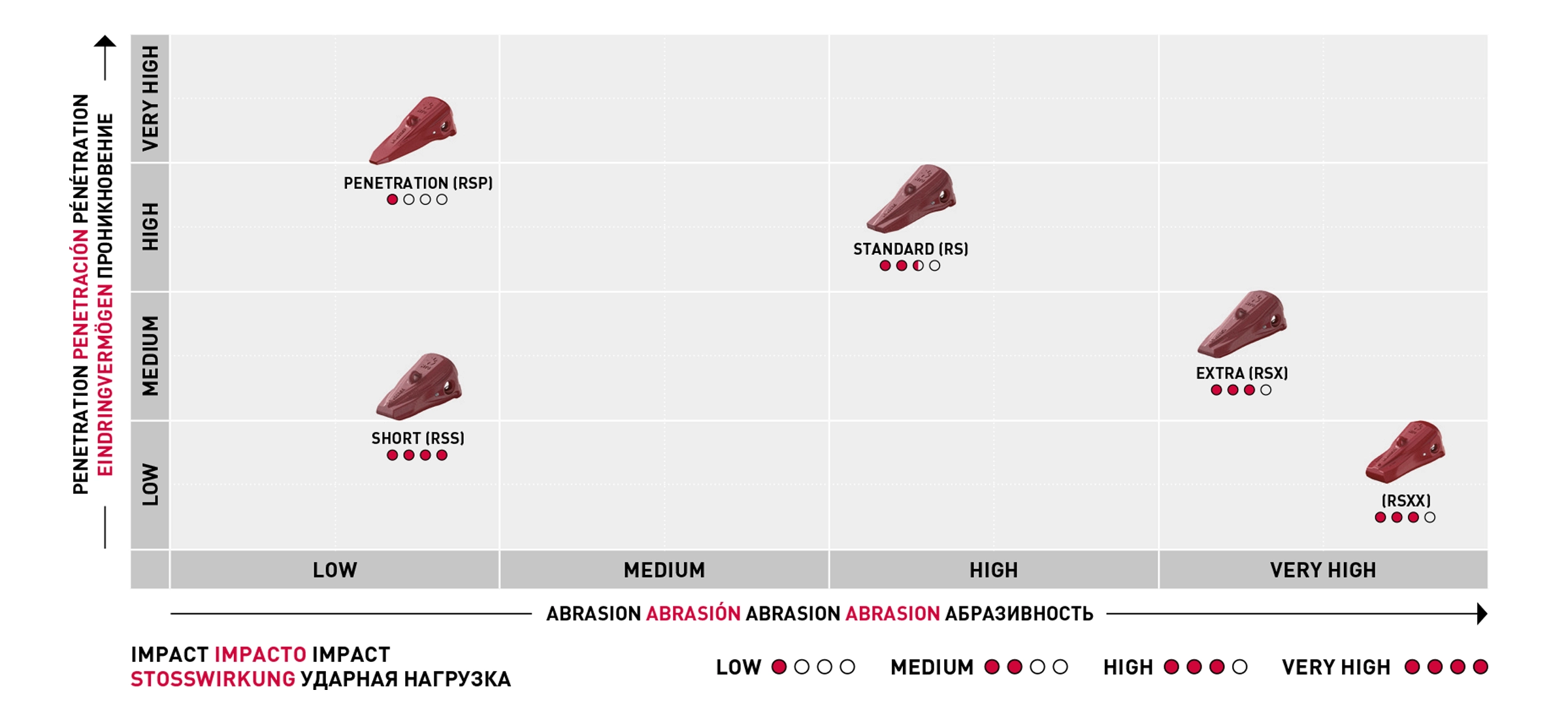

Tooth Selector
Choose Your Adapter
MTG offers two adapter versions to answer the demand for different Rope Shovel applications: A heavy-duty (X) and a penetration adapter (P). Both adapters are available for WHISLER10*, WHISLER12* and Wide Radius (WR6 / BK600*) lip designs and can be used either with a conventional or hammerless locking.

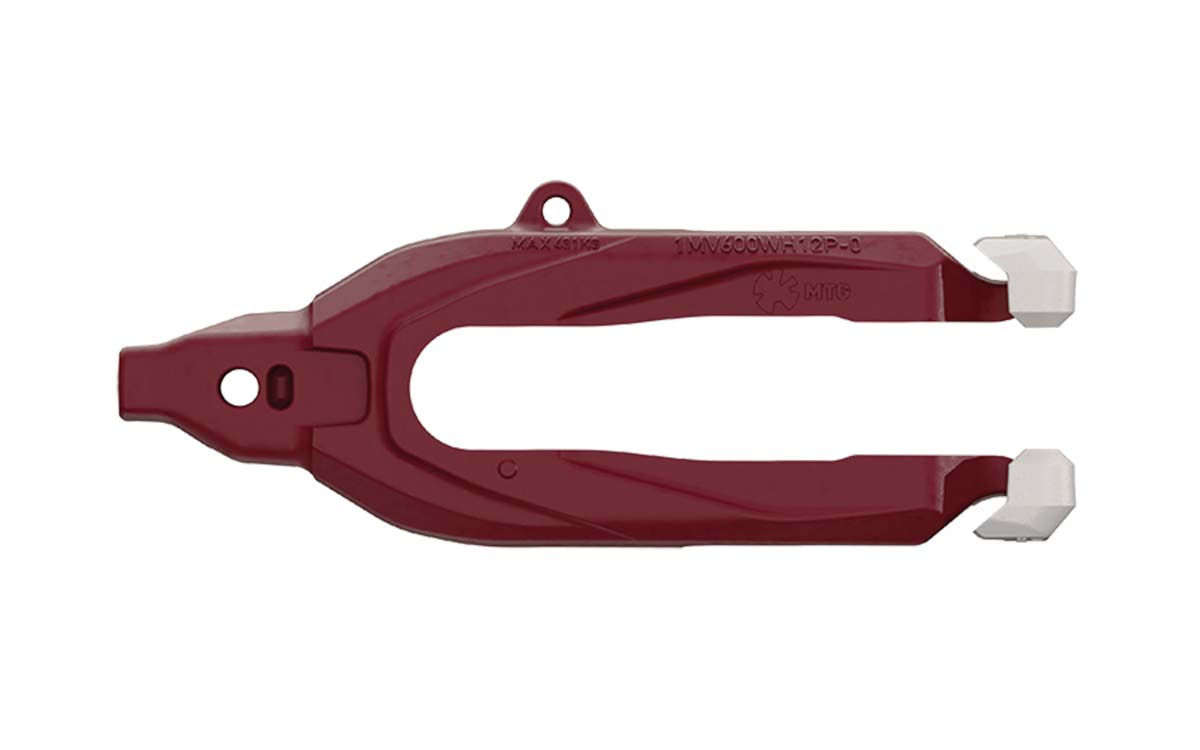

Penetration Adapter (P)
The penetration adapter (P) is a versatile adapter option with an optimal balance between penetration and resistance.
Their wear-ratio is optimal to reduce weight and costs while increasing performance. This makes them suitable for Rope Shovel applications in low to medium abrasive terrains.
To protect against higher levels of abrasion and impacts, the adapter can also be equipped with a mechanical wear cap (MP / MX or M360X).

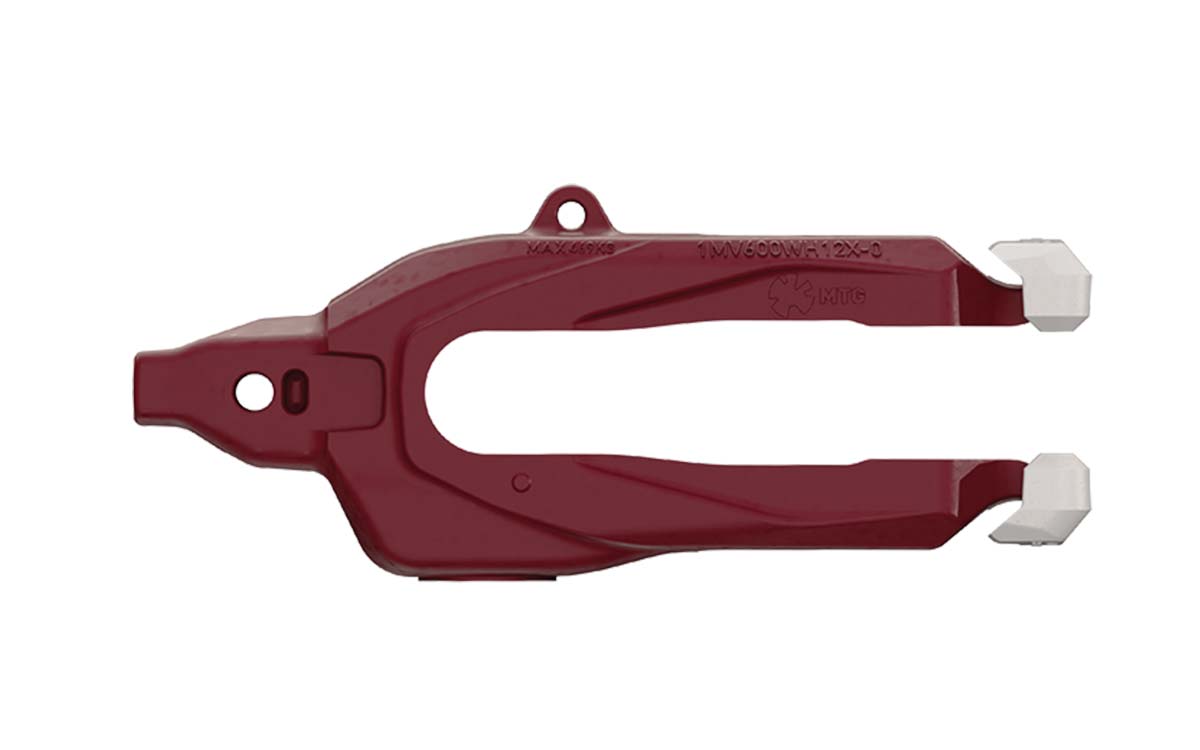

Heavy-duty Adapter (X)
The heavy-duty adapter is especially designed for tough digging conditions. A reinforced bottom leg provides additional wear material that increases the adapter’s resistance against higher levels of abrasion and maximizes the adapter’s wear life.
To add more protection against impacts, the heavy-duty adapter can be equipped with a mechanical wear cap (MP or MX).
Locking Solutions
Choose between a hammerless and conventional locking that come in 3-part sets consisting of a c-clamp, wedge and inverted wedge. Additional accessories include oversized wedges for deformed lips.

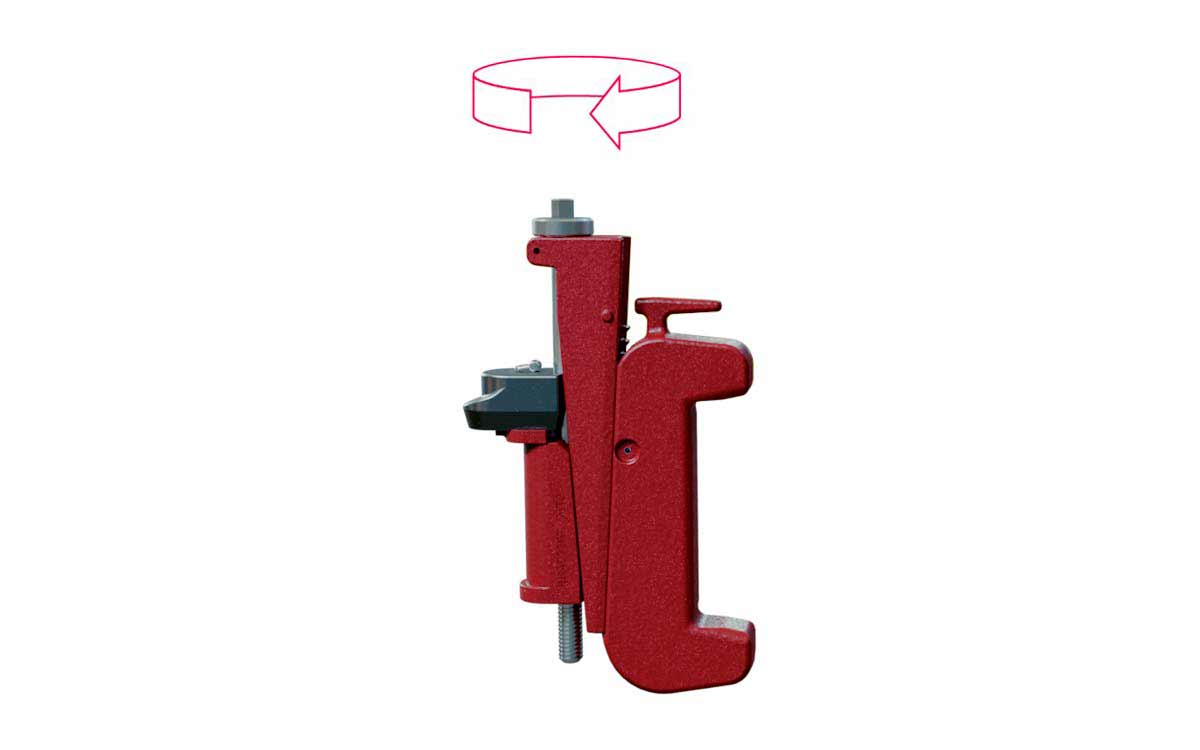

Hammerless Locking
The new Ratchet Hammerless (RH) locking for STARMET ROPE SHOVELS adapters allows safe and quick maintenance. All assembly and disassembly steps can safely be done from top, and an auto-tightening effect is eliminating maintenance for re-tightening.

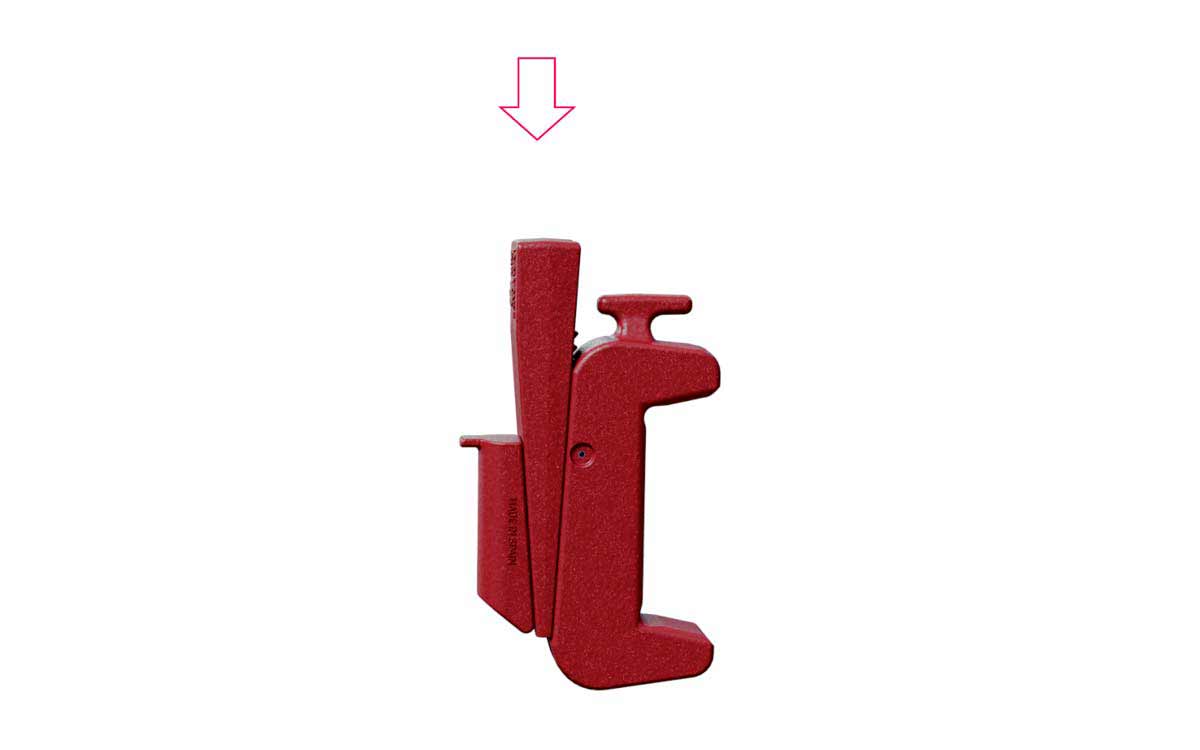

Conventional Locking
The conventional 3-part ratchet locking (CR) for STARMET ROPE SHOVELS adapters consists of a c-clamp, wedge and inverted wedge and is available for all types of adapters and lip designs.
Discover the innovative Ratchet Hammerless adapter locking
-
Play Video
Mining Machines
MTG provides full-bucket solutions for a wide range of mining equipment. Select your machine to find the best G.E.T. solution for your specific mining requirements.
Our G.E.T. Solutions for Mining
Select a product family to learn more about our products
*The brands identified with an asterisk do not belong to METALOGENIA S.A. and this organization refers to them only to identify the destination of its products, without there being any relationship between METALOGENIA S.A. and the legitimate owners of any such brands.
