Check out the 6 Rope Shovels solutions we propose for different dipper designs, representing the most common configurations.
Machine Examples*

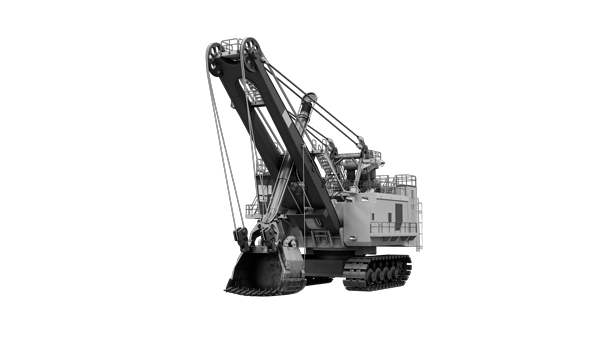

Rope Shovel
P&H2300
P&H2800
P&H4100
CAT7395
CAT7495
TZ WK-55

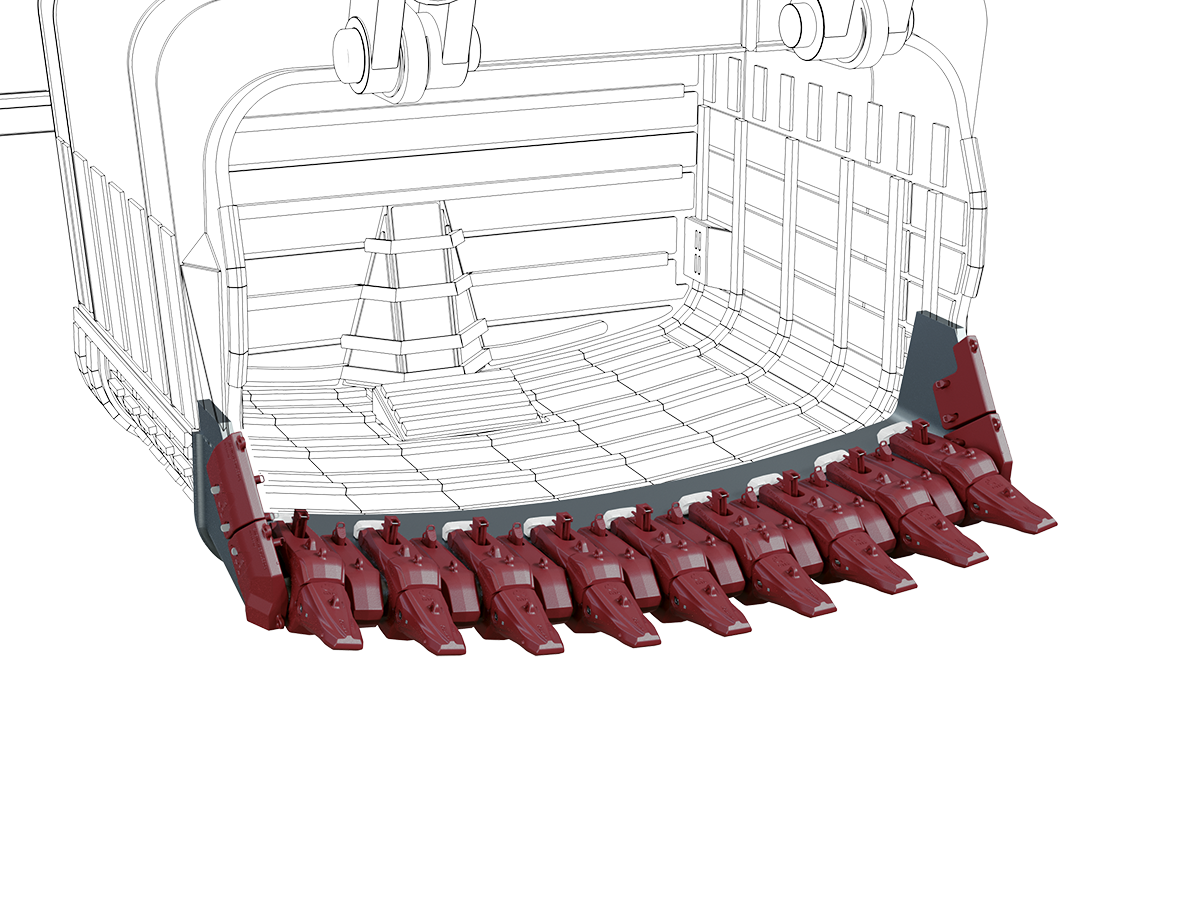

Option 1/6
STARMET ROPE SHOVELS + PLUS

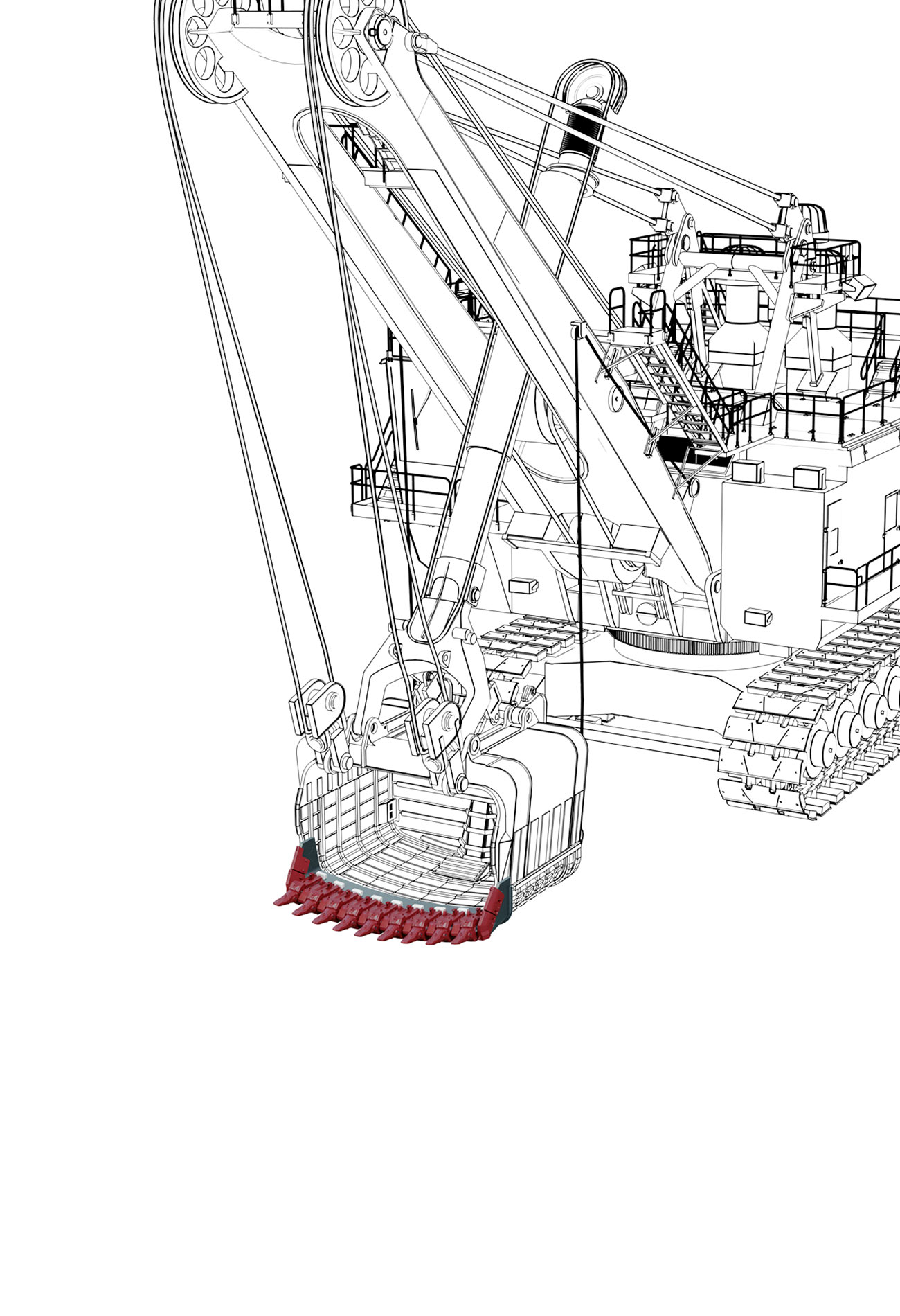

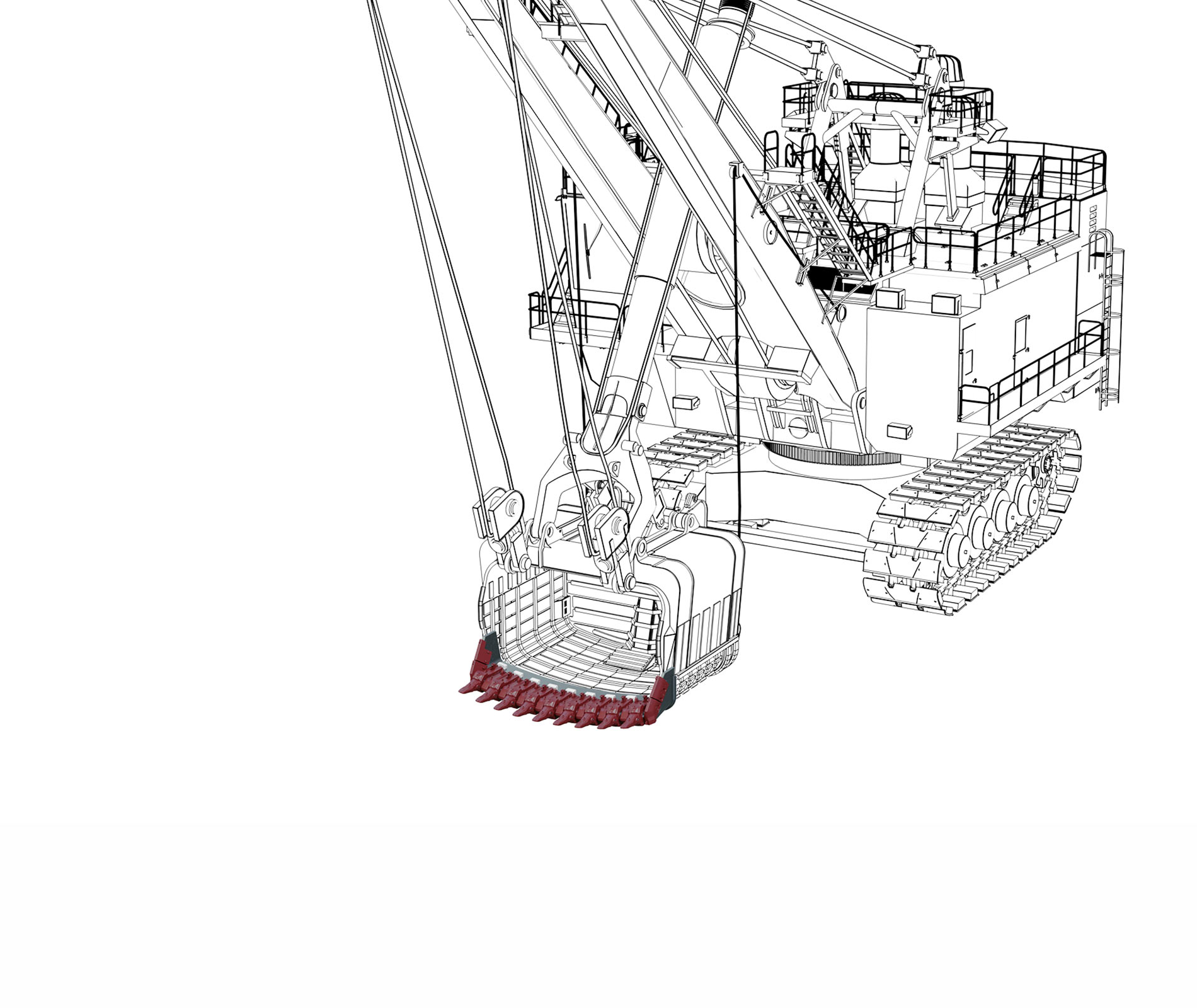

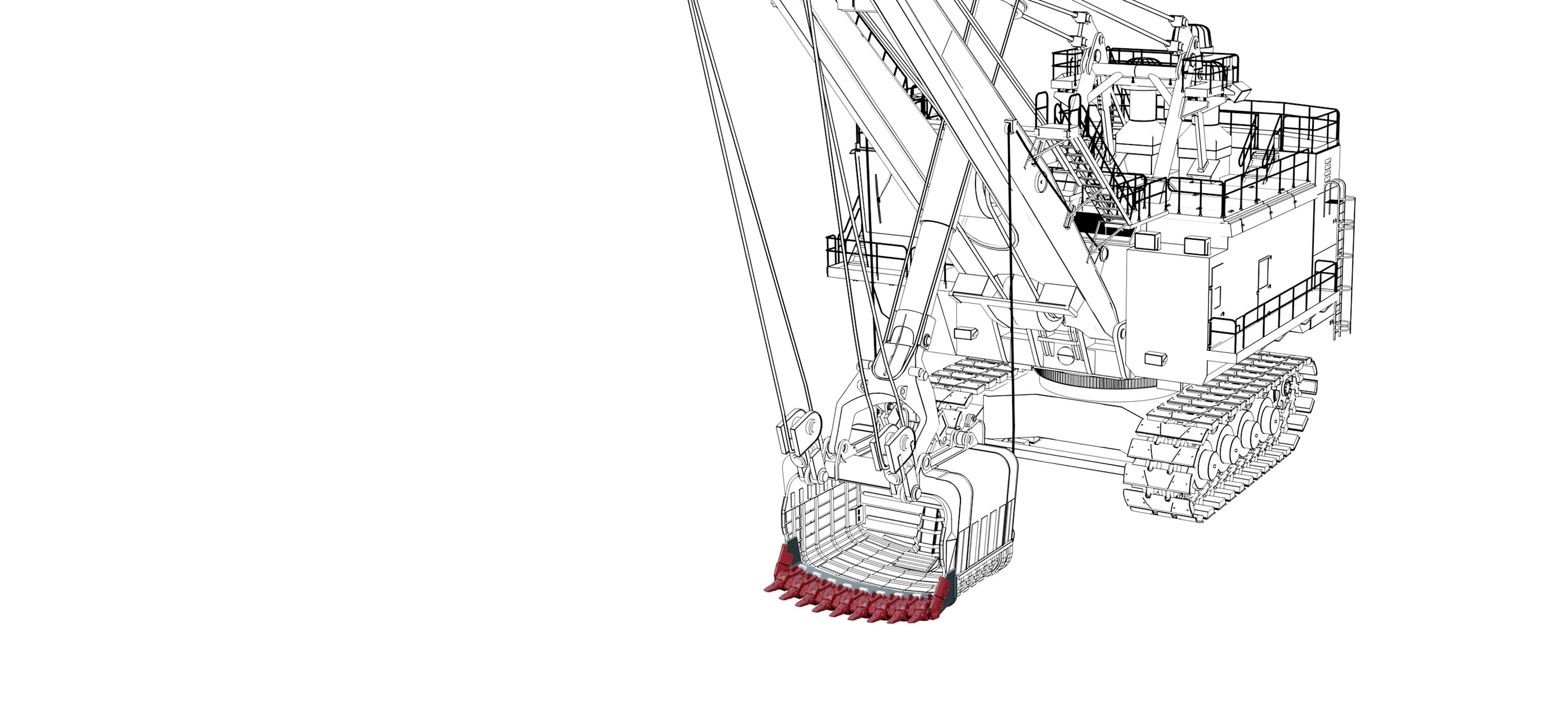

For Rope Shovels like the CAT7495* with HR dipper design.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WH12 or WH12X (STARMET ROPE SHOVELS)
Lip shrouds: WH12 C250 (PLUS)
Wing shrouds: WH12 L230 & U230 (PLUS)

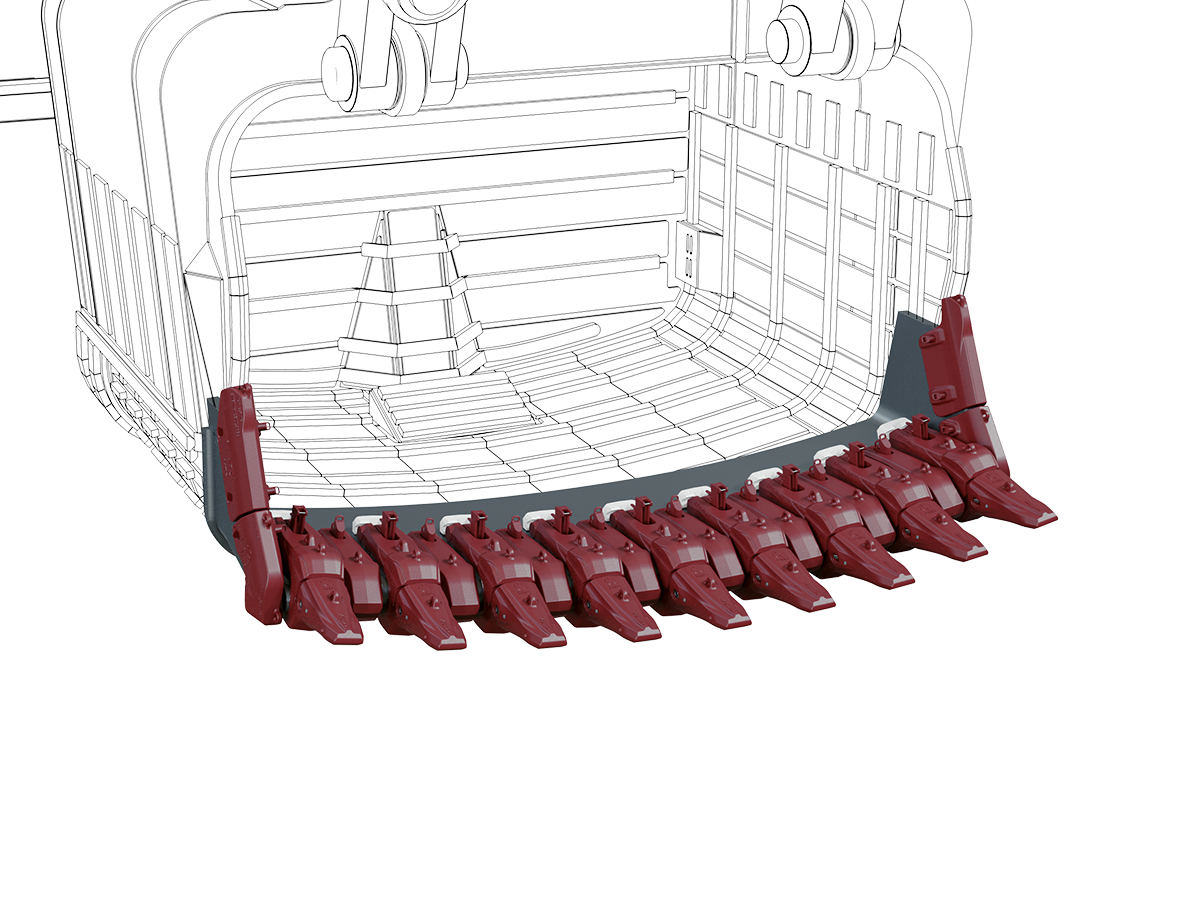

Option 2/6
STARMET ROPE SHOVELS + PLUS
For Rope Shovels like the CAT7495* or CAT7395* with BI and BII dipper designs.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WH12 or WH12X (STARMET ROPE SHOVELS)
Lip shrouds: WH12 C250 (PLUS)
Wing shrouds: WH12 L385 & U385 (PLUS)
Option 3/6
STARMET ROPE SHOVELS + PLUS

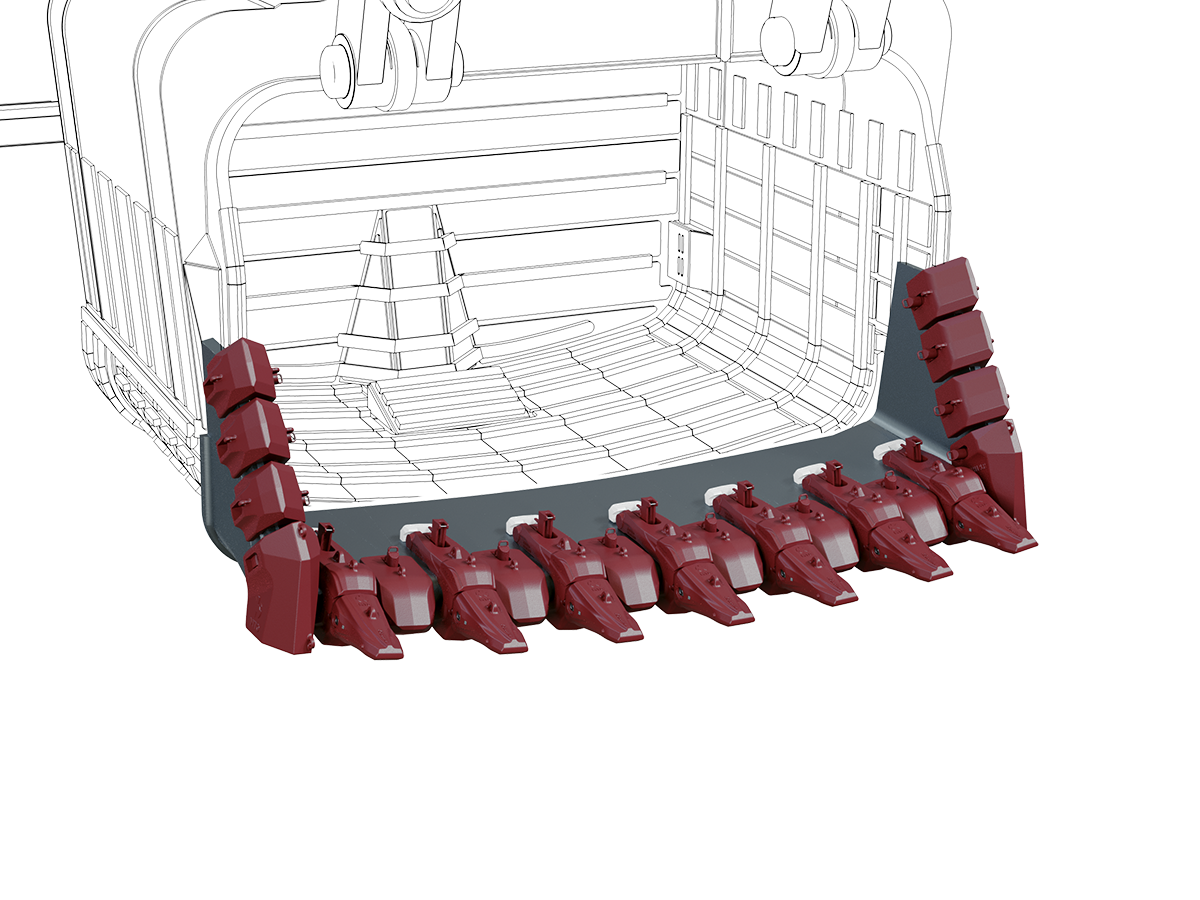

For Rope Shovels like the P&H4100* or TZ WK-55* with HR dipper design.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WH12 or WH12X (STARMET ROPE SHOVELS)
Lip shrouds: WH12 C350 / TZC350 (PLUS)
Wing shrouds: LWH12 and UWH12 (PLUS)

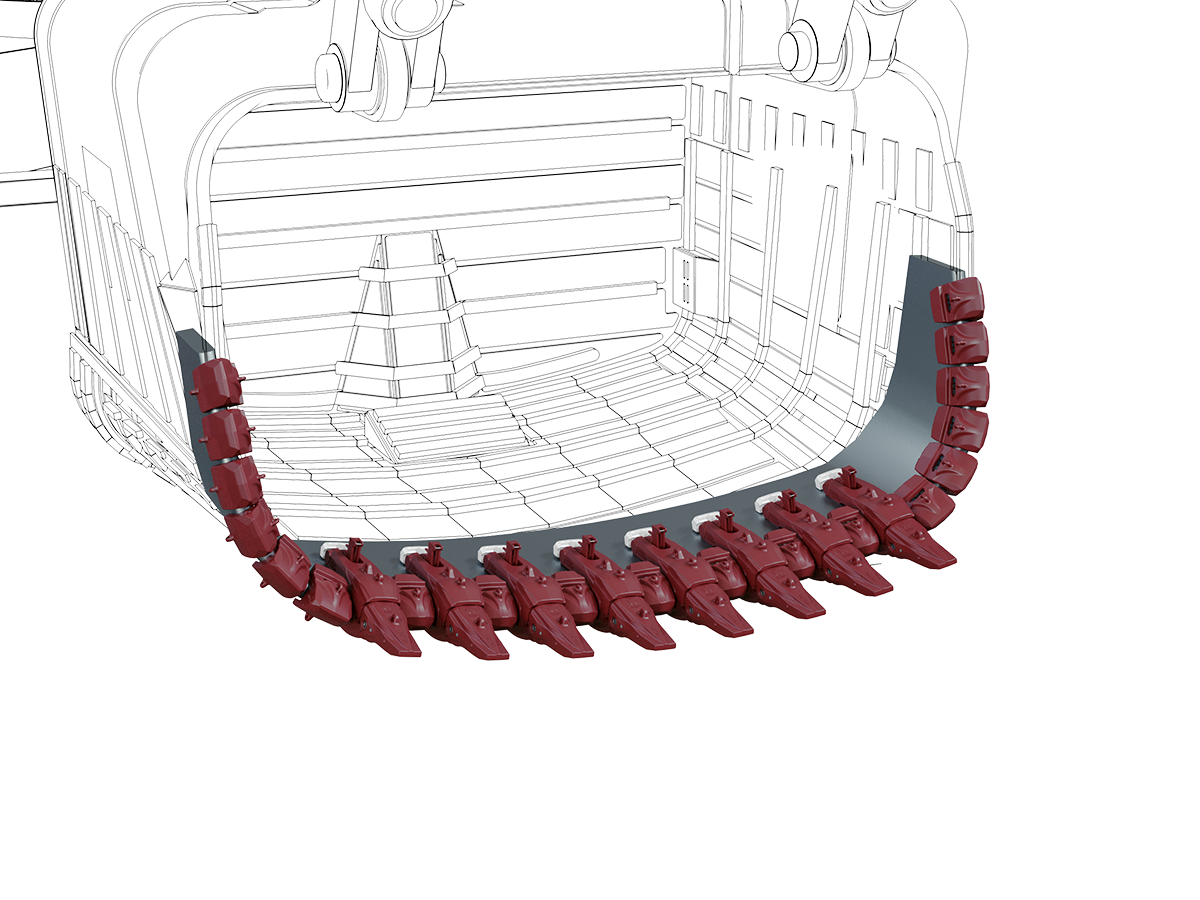

Option 4/6
STARMET ROPE SHOVELS + PROMET
For Rope Shovels like the P&H4100* with BK* wide radius dipper design.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WR6 or WR6X (STARMET ROPE SHOVELS)
Lip shrouds: WR6 C260 (PROMET)
Wing shrouds: WR6 U306 / M318 and L297(PROMET)
Option 5/6
STARMET ROPE SHOVELS + PLUS

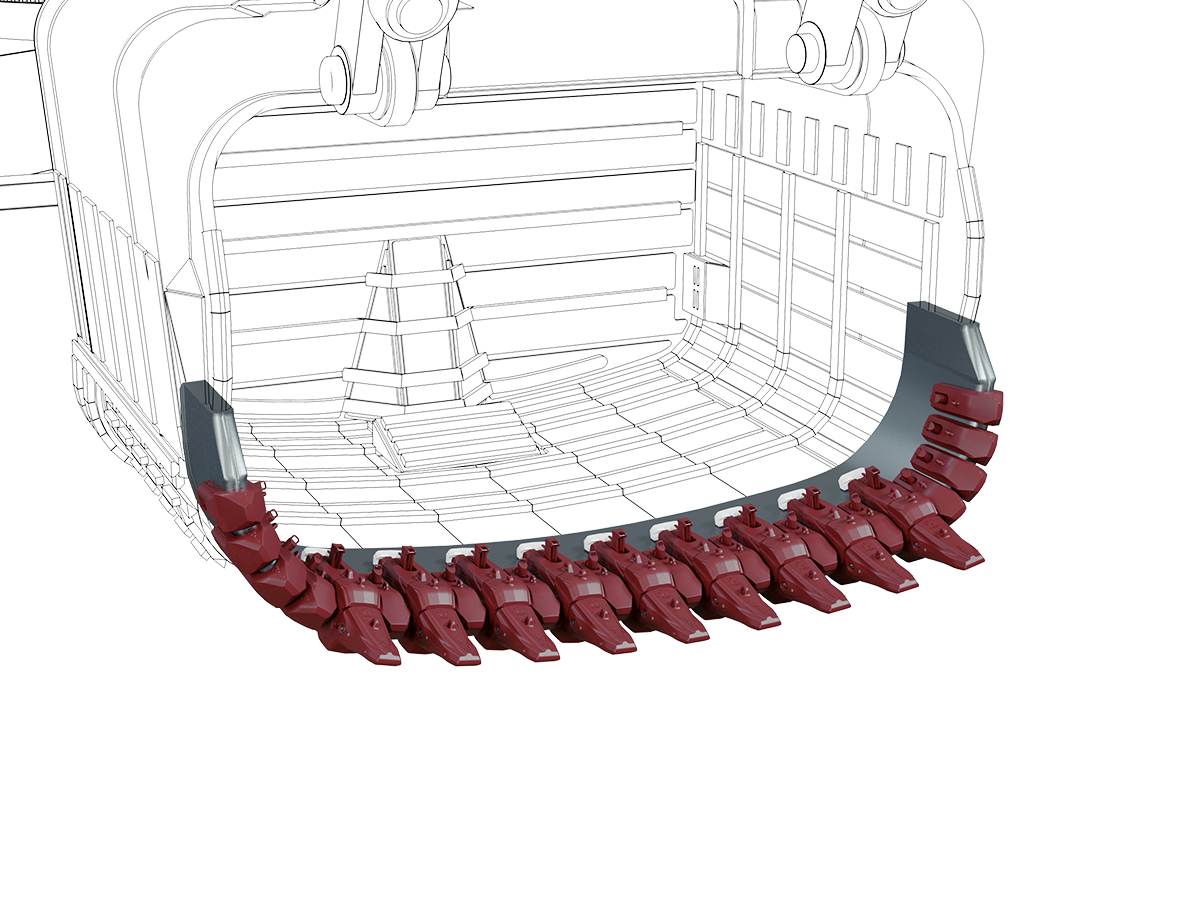

For Rope Shovels like the P&H4100* with WH12* wide radius dipper design.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WH12 or WH12X (STARMET ROPE SHOVELS)
Lip & Wing Shrouds: WH12 C255 (PLUS)

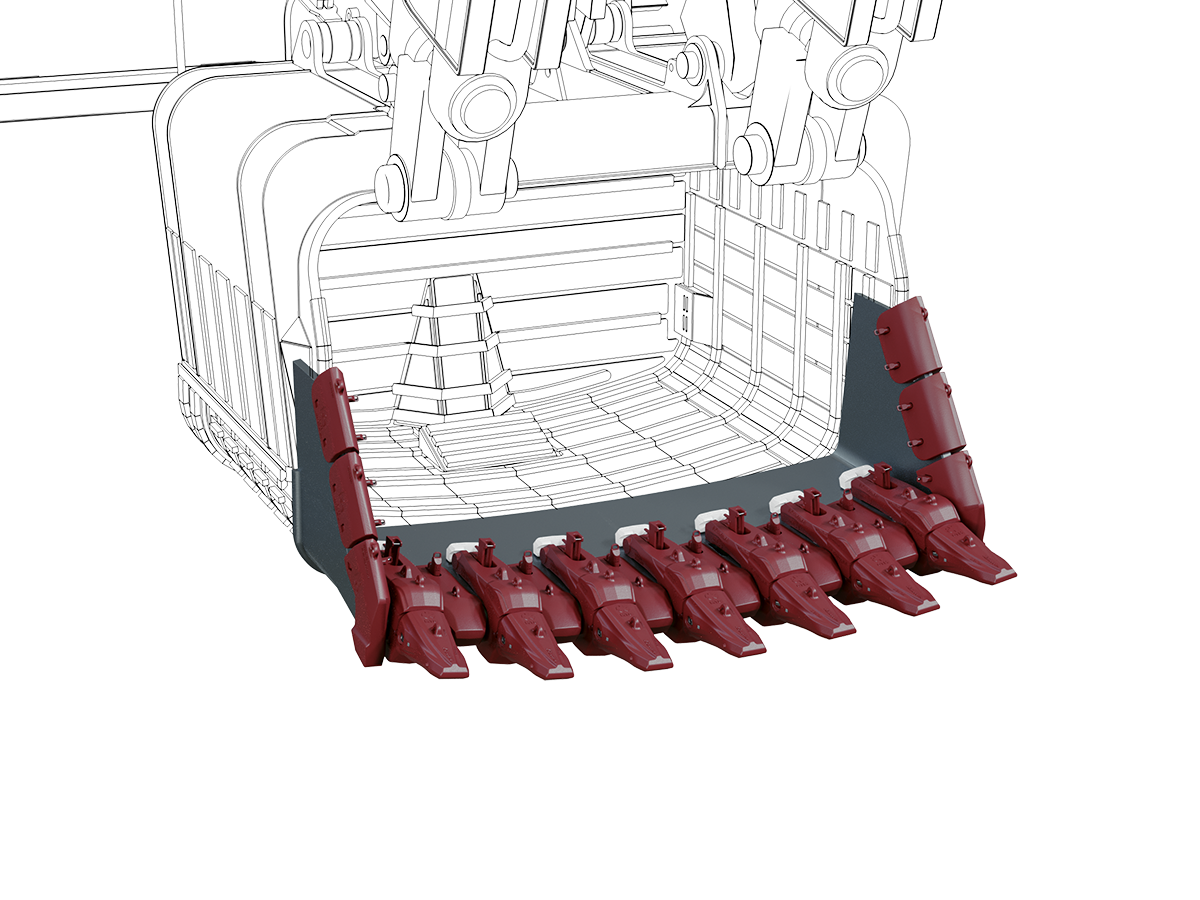

Option 6/6
STARMET ROPE SHOVELS + PLUS
For Rope Shovels like the P&H2800* or P&H2300* with HR dipper design.
Tooth range: MA500 (STARMET ROPE SHOVELS)
Adapters: WH10 or WH10X (STARMET ROPE SHOVELS)
Lip shrouds: WH10 C280 (PLUS)
Wing shrouds: WH10 U&L175 or U&L240 (PLUS)
Mining Machines
MTG provides full-bucket solutions for a wide range of mining equipment. Select your machine to find the best G.E.T. solution for your specific mining requirements.
