MTG SYSTEMS VEEMET
Benefits & Features
-
SHORT AND SAFE DOWNTIMES
An optimized locking with reduced parts allows a hammerless tooth assembly in only 2 steps providing an incomparable ease and safety to GET maintenance.
-
HIGHER PRODUCTIVITY
Longer grooves and slimmer teeth further improve the penetration capabilities of our self-sharpening tooth designs optimizing your digging efficiency and reducing costs.
-
LONGER OPERATIONAL TIME
The V-shaped fitting and the optimized locking with reinforced pin provide a better stability that reduces plastic deformation and maximizes wear life.
-
OPTIMAL PERFORMANCE
New and improved tooth designs have been added to the wide product range providing a suitable GET solution for all sorts of excavator and loader applications.
Up-to-date product information at your fingertips
With a QR-code on every VEEMET tooth, all up-to-date product information is always and everywhere available at your fingertips. Simply scan the QR-code and access the product specific service materials about welding, assembly, etc.
Compatible with GET DETECTION
The larger sizes of VEEMET (≥190) are ready to be equipped with MTG's GET DETECTION system. Real-time monitoring and immediate alarms in case of a GET detachment provide maximum safety, reduce unplanned downtime, and increase productivity of mining excavators.
-
V-shaped fitting with improved stability
The V-shaped fitting and an 80% larger contact area increase the tooth system's stability and resistance against direct, inverse, lateral and torsional loads. This reduces plastic deformation of the adapter noses to maximize wear life of adapters and teeth. Additionally, the higher stability made it possible to design the noses 5% slimmer which contributes to better tooth penetration and productivity. -
-
-
-
Wear caps with cast-in wear indicators
An optimized wear material ratio increases the durability of adapters while cast-in wear indicators improve service friendliness. Additionally, reinforced wear cap guides improve their durability to withstand even the toughest digging conditions with high impacts.
Video - The new generation of tooth system
-
Play Video

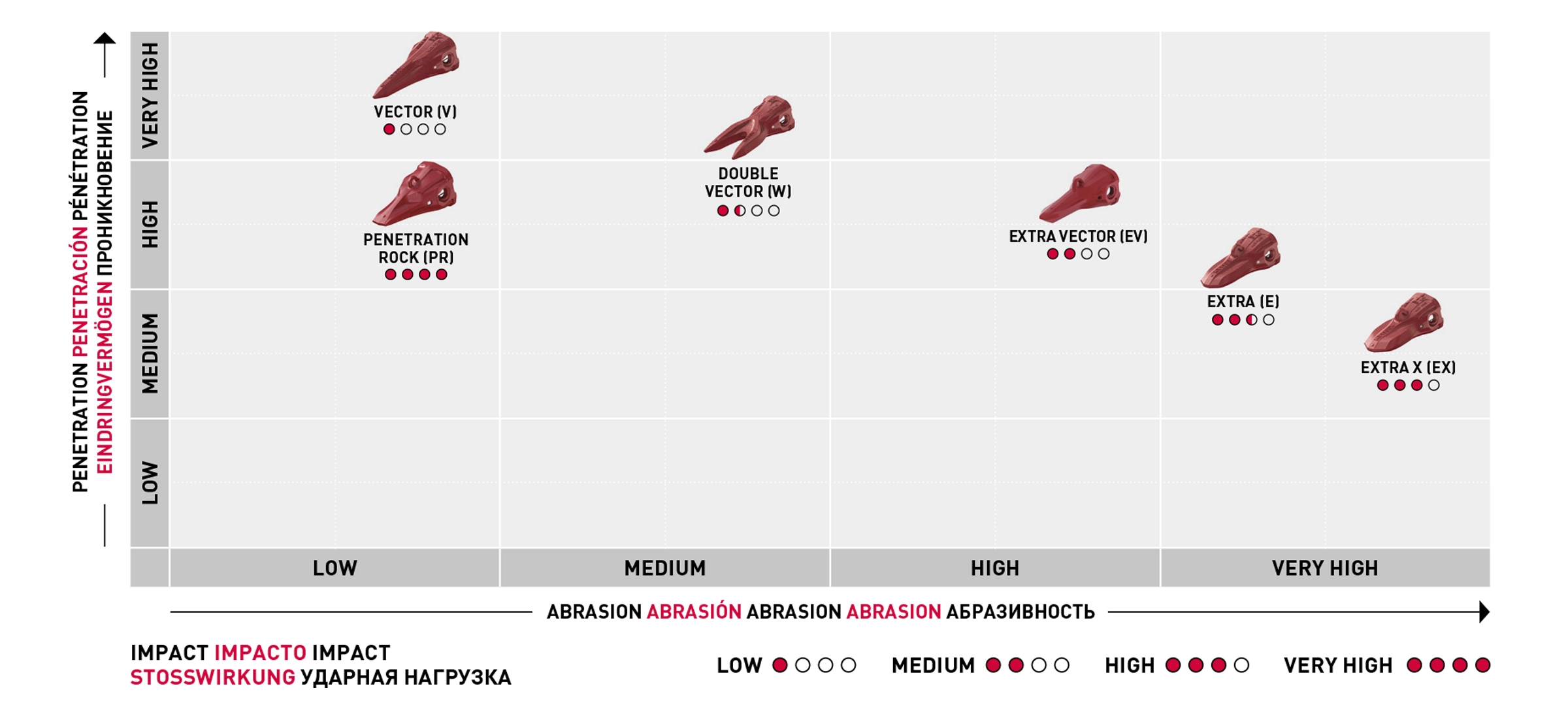

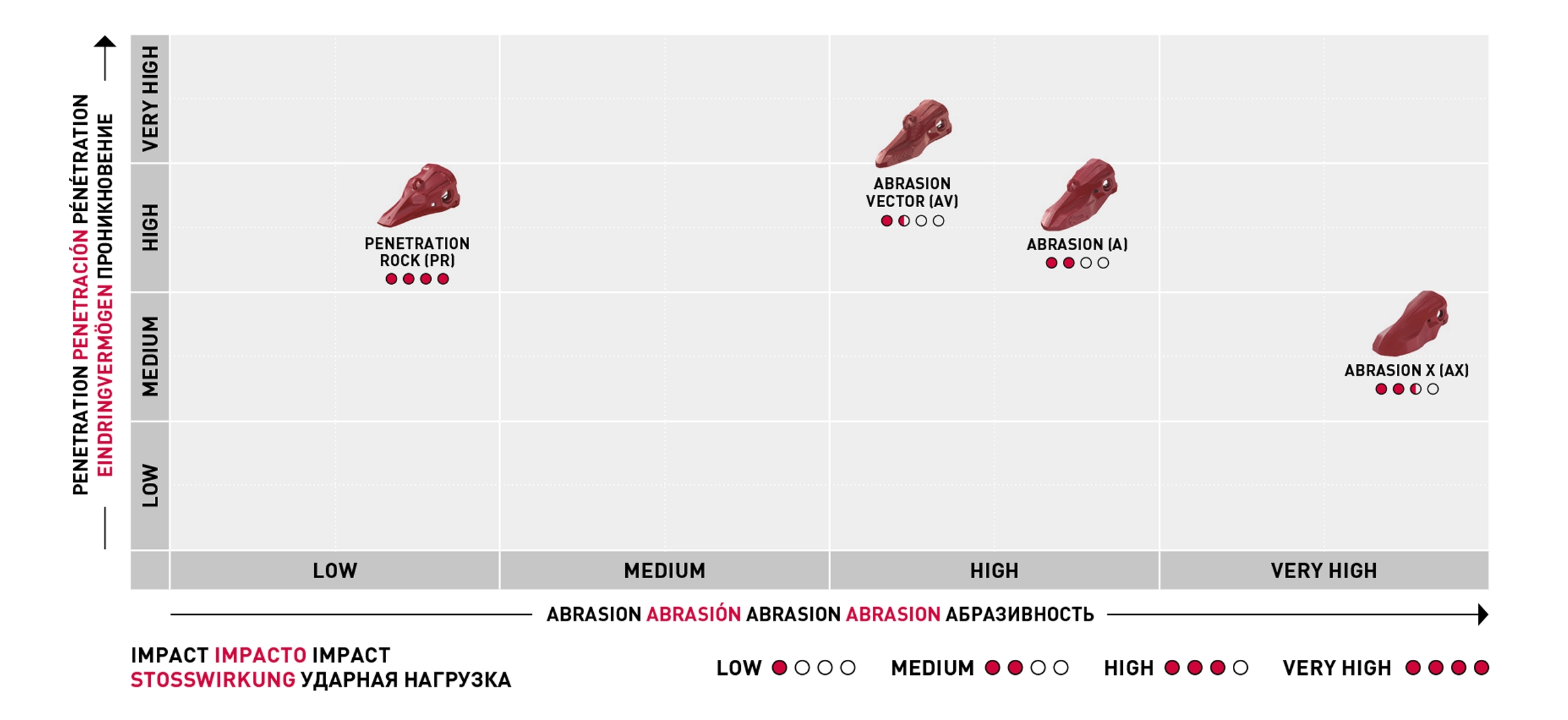

Find Your Tooth Design
Whether you are working in highly abrasive terrains or require good penetration, we have the profile you need to ensure optimal performance and operating efficiency. Our self-sharpening tooth designs have the wear material just where it needs to be to extend the tooth's lifespan to the maximum.
Three new tooth designs complement the range of tooth designs: PENETRATION-ROCK (PR), EXTRA-VECTOR (EV) and ABRASION-VECTOR (AV).
Choose Your Adapter
We have different options available depending on the lip type of your bucket or shovel. As abrasive and high impact applications require additional protection, add our slide-on wear cap to the adapter to extend its service life.
-
CENTRAL (WC)
Suitable for straight lips with a thickness of 80-140 mm. It can optionally be equipped with a slide-on mechanical wear cap (M) and a bottom wear plate (HD) to extend the service life of the adapter. -
DELTA (WLD/WRD)
Suitable for delta and semi-delta lips with a thickness of 80-140 mm. It can optionally be equipped with a slide-on mechanical wear cap (M) and a bottom wear plate (HD) to extend the service life of the adapter. -
CORNER (WL/WR)
Left and right corner adapters are especially designed for heavy-duty applications and are available for 90-140 mm lips. They can optionally be equipped with a slide-on mechanical corner wear cap (ML) as well as a bottom (HD-B) and lateral wear plate (HD-L) to increase resistance against high levels of impacts and abrasion. -
STRADDLE (WS)
This adapter is available in the sizes 190, 250 and 500 to fit corner positions of 90 - 140 mm lips. It can optionally be equipped with a slide-on mechanical wear cap (MS) to extend the service life of the adapter.
-
Play Video
-
-
-
-
-
-
Mining Machines
MTG provides full-bucket solutions for a wide range of mining equipment. Select your machine to find the best G.E.T. solution for your specific requirements.
Our G.E.T. Solutions for Mining
MTG offers a wide range of solutions. Select a product family to find out more details.
