Benefits & Features
SHORT AND SAFE DOWNTIMES
An optimized locking with reduced parts allows a hammerless tooth assembly in only 2 steps providing an incomparable ease and safety to wearparts maintenance.
Longer grooves and slimmer teeth further improve the penetration capabilities of our self-sharpening tooth designs optimizing your dredging efficiency and reducing costs.
LONGER OPERATIONAL TIME
The V-shaped fitting and the optimized locking with reinforced pin provide a better stability that reduces plastic deformation and maximizes wear life.
New and improved tooth designs have been added to the wide product range providing a suitable wearparts solution for all sorts of applications.

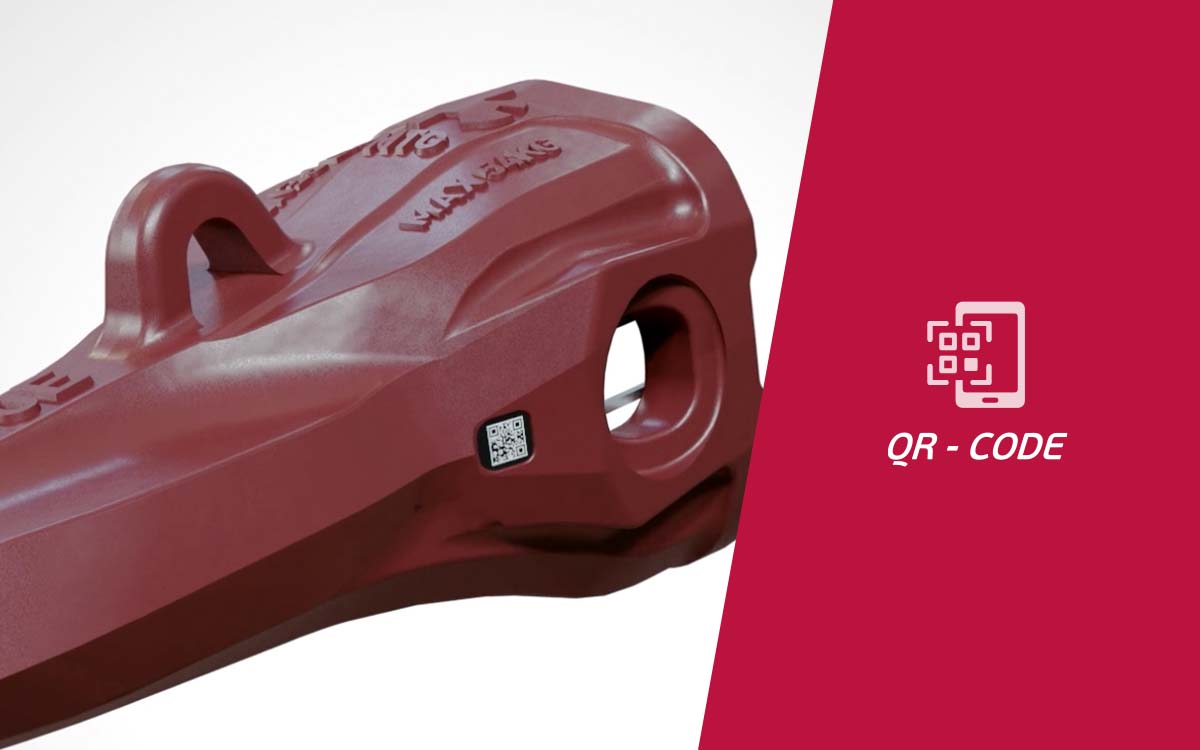

Up-to-date product information at your fingertips

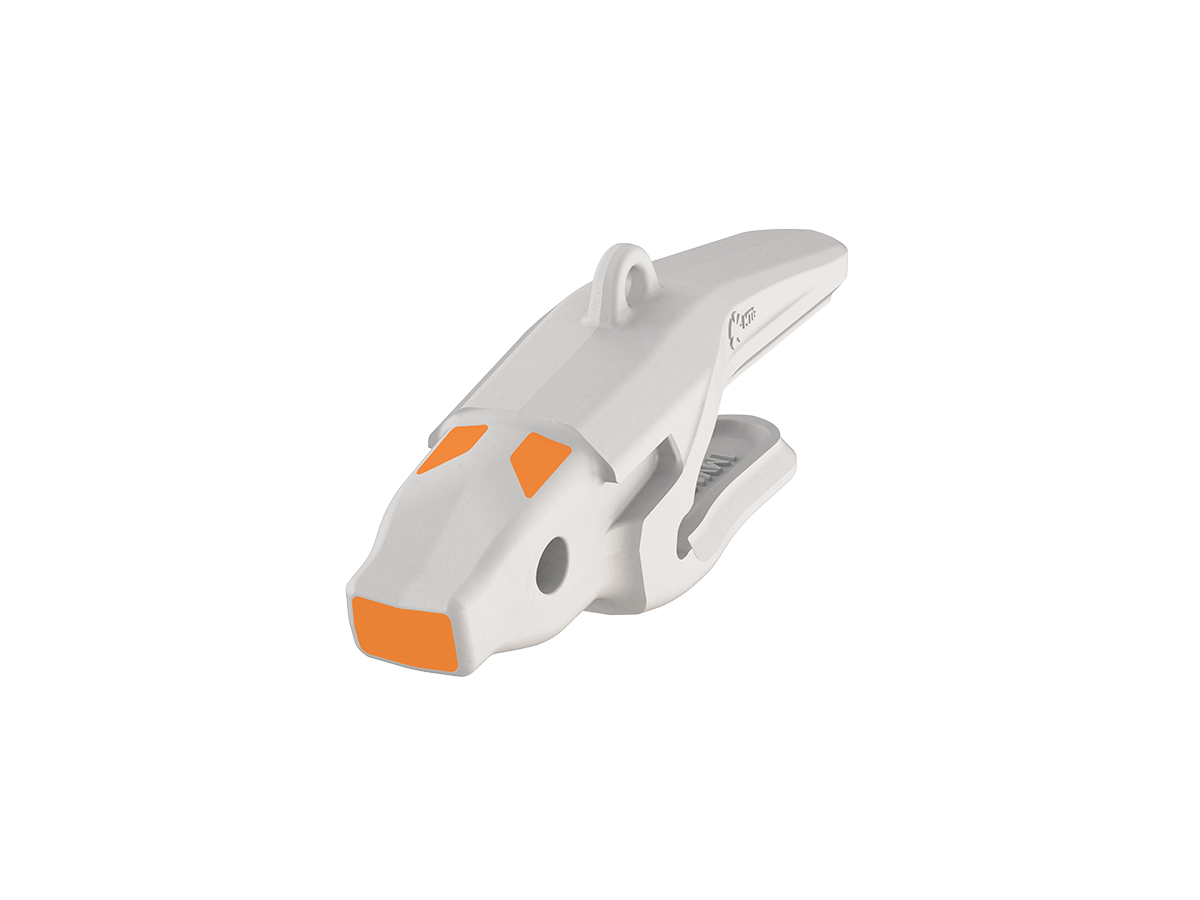

V-shaped fitting with improved stabilityThe V-shaped fitting and an 80% larger contact area increase the tooth system's stability and resistance against direct, inverse, lateral and torsional loads. This reduces plastic deformation of the adapter noses to maximize wear life of adapters and teeth. Additionally, the higher stability made it possible to design the noses 5% slimmer which contributes to better tooth penetration and productivity.

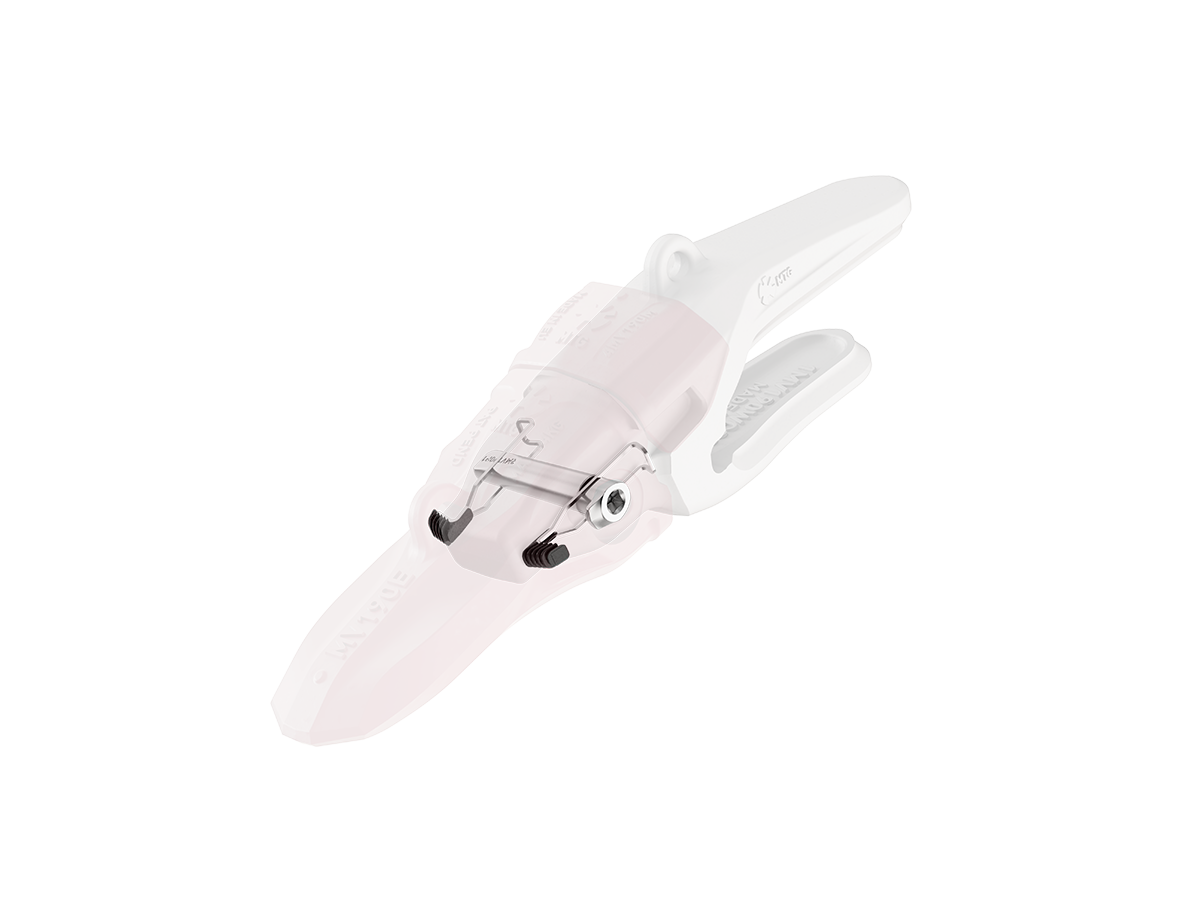

Optimized hammerless lockingThe newly designed retainers are integrated and part of the tooth references. This reduces the locking parts and provides more contact area to reinforced pins. As a result, the locking becomes 52% more resistant against pin bending.

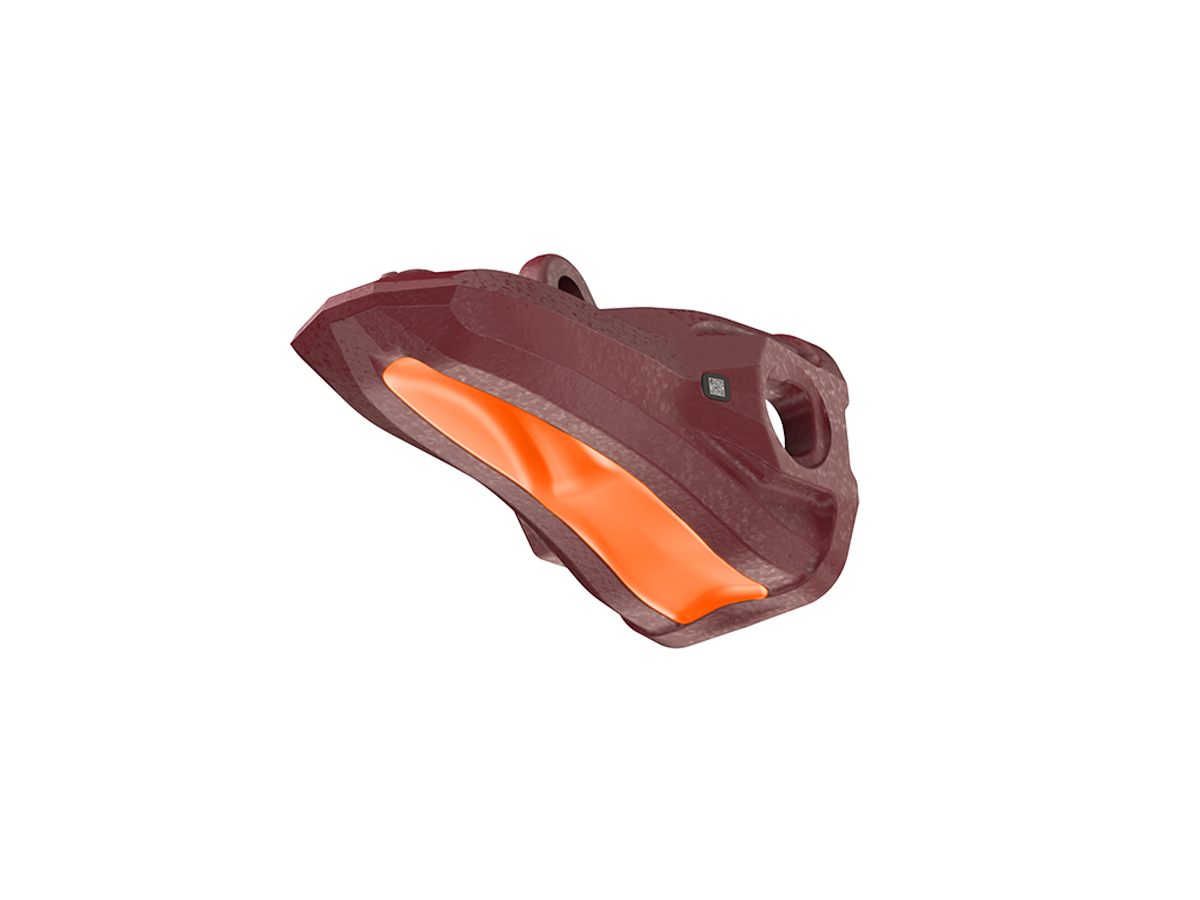

Longer groove and slimline teethThe tooth designs are not only self-sharpening, but also more slimline than ever. Longer grooves at the bottom guarantee a tooth profile with increased penetration capabilities that maximize your productivity.
Easy 2-step tooth change-outsThe optimized locking allows safe, quick, and easy tooth change-outs in only two steps: simply put on the tooth and insert the pin with the removal tool. There will be an acoustic locking confirmation when the pin has completely been inserted.

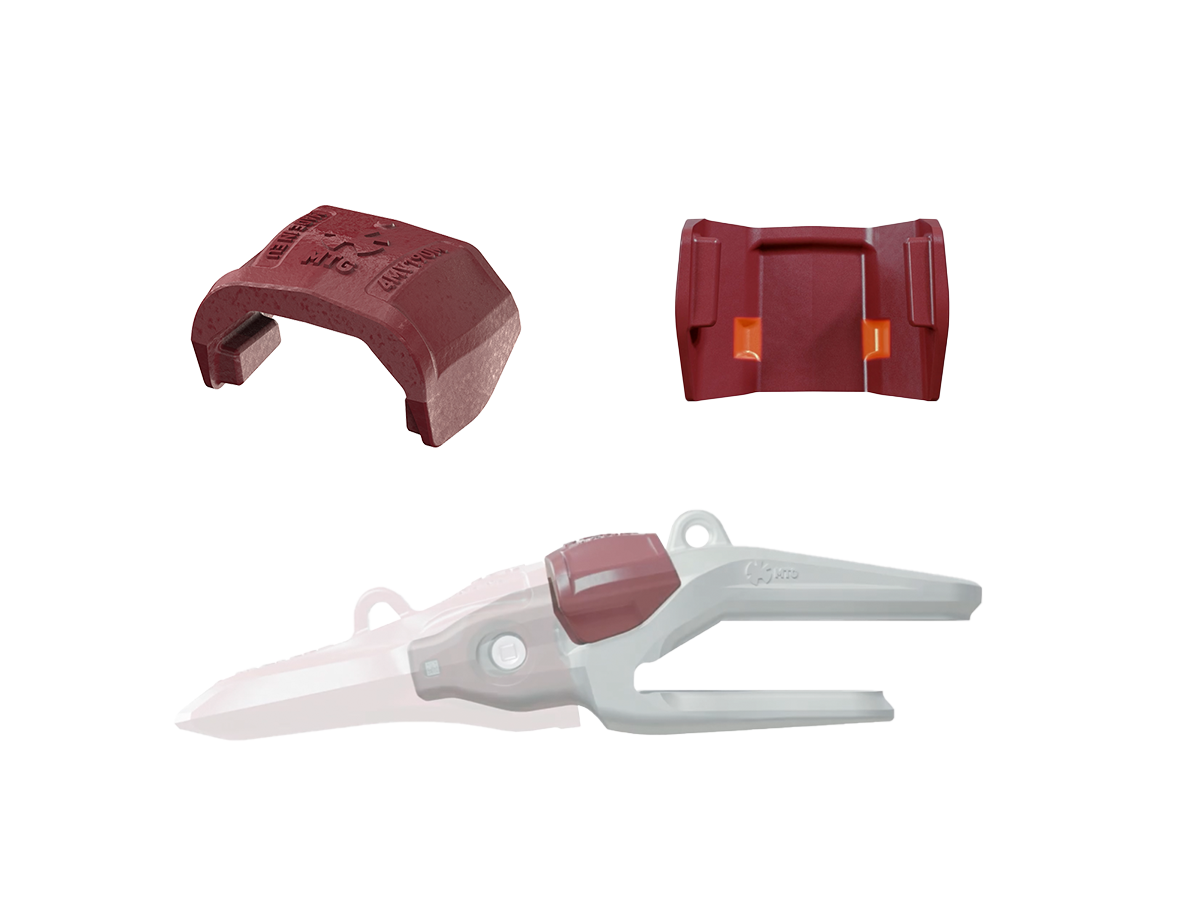

Wear caps with cast-in wear indicatorsAn optimized wear material ratio increases the durability of adapters while cast-in wear indicators improve service friendliness. Additionally, reinforced wear cap guides improve their durability to withstand even the toughest digging conditions with high impacts.
Video - The new generation of tooth system
Find Your Tooth Design

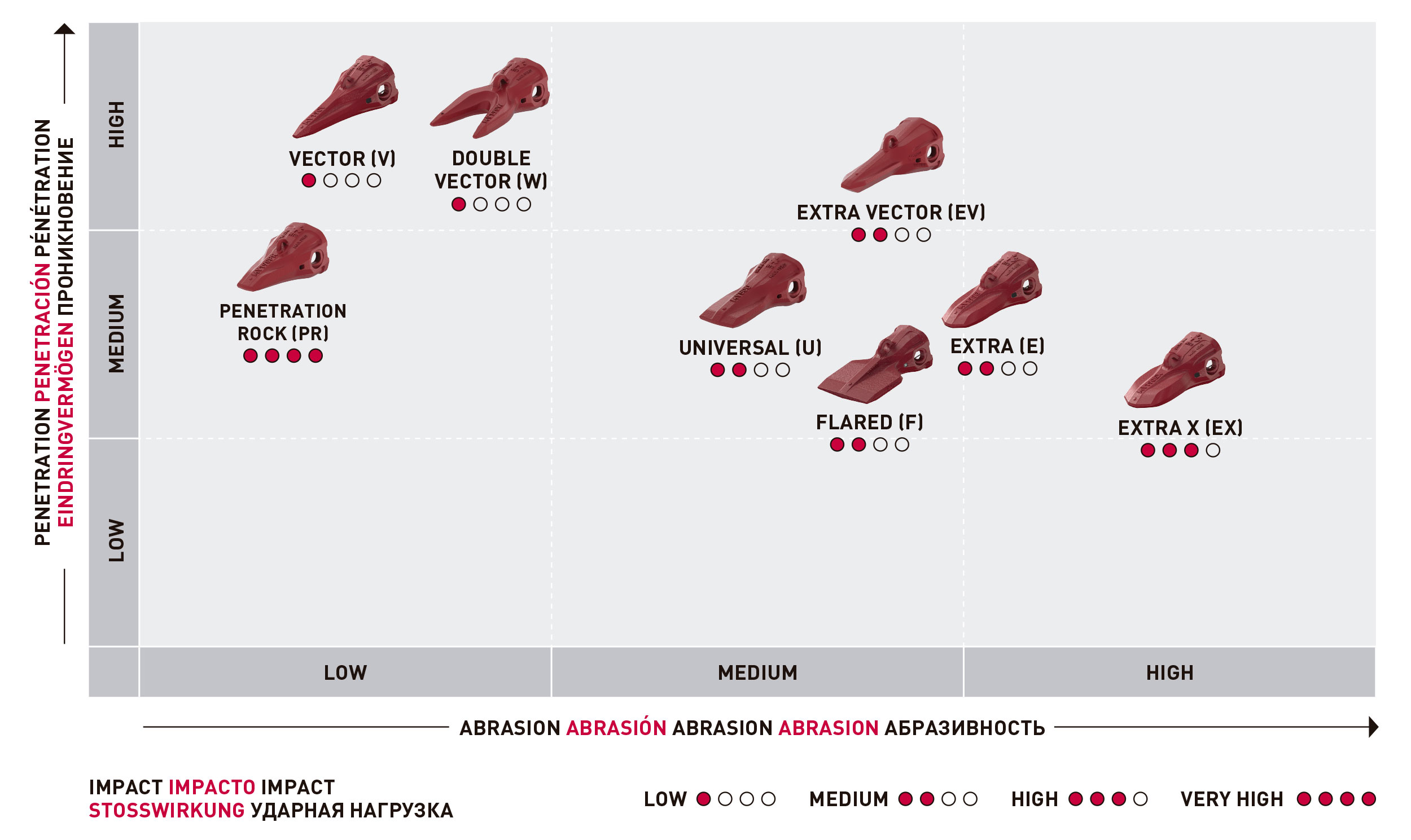

Three new tooth designs complement the range of tooth designs: PENETRATION-ROCK (PR), EXTRA-VECTOR (EV) and ABRASION-VECTOR (AV).
Choose Your Adapter
We have different options available depending on the lip type of your bucket or clamshell. As abrasive and high impact applications require additional protection, add our slide-on wear cap to the adapter to extend its service life.

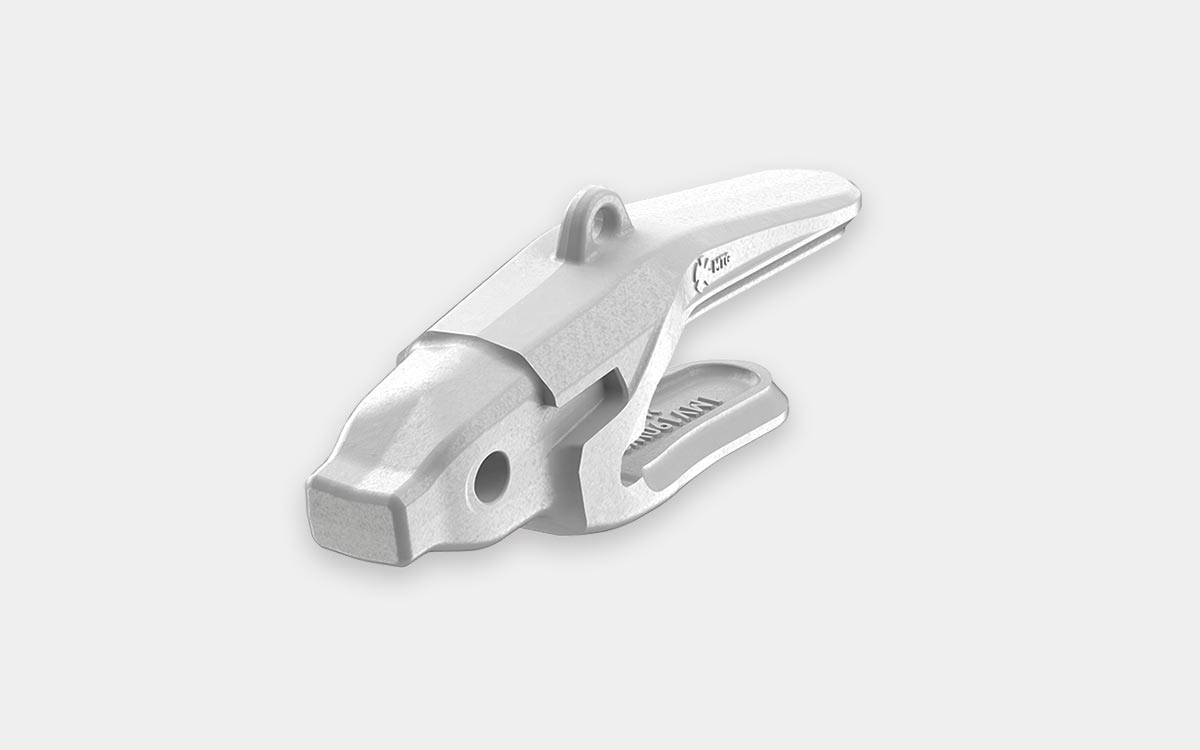

CENTRAL (WC)Suitable for straight lips with a thickness of 80-140 mm. It can optionally be equipped with a slide-on mechanical wear cap (M) and a bottom wear plate (HD) to extend the service life of the adapter.

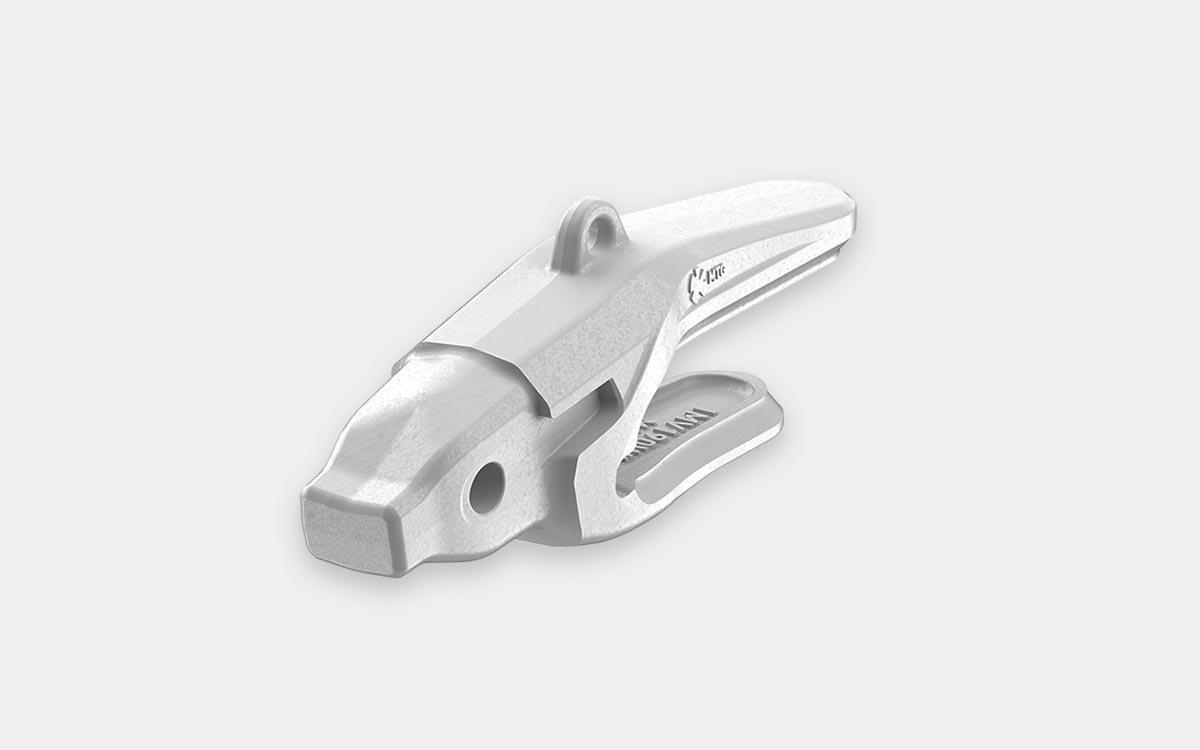

DELTA (WLD/WRD)Suitable for delta and semi-delta lips with a thickness of 80-140 mm. It can optionally be equipped with a slide-on mechanical wear cap (M) and a bottom wear plate (HD) to extend the service life of the adapter.

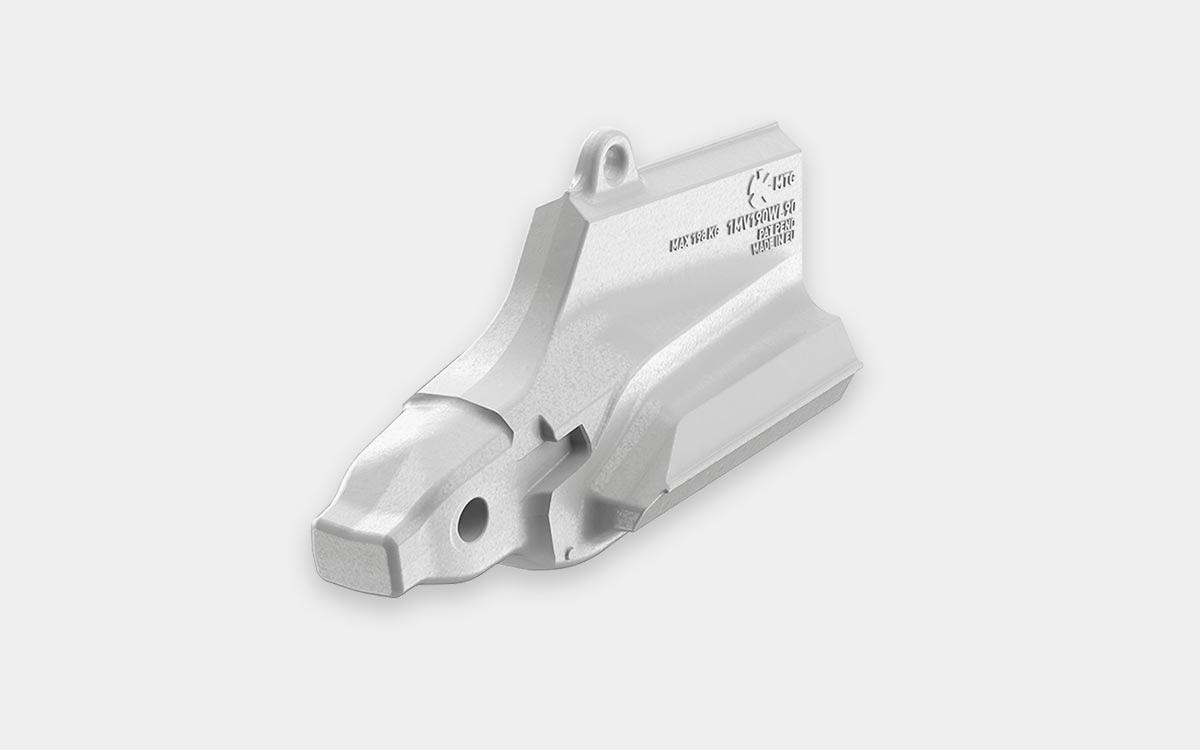

CORNER (WL/WR)Left and right corner adapters are especially designed for heavy-duty applications and are available for 90-140 mm lips. They can optionally be equipped with a slide-on mechanical corner wear cap (ML) as well as a bottom (HD-B) and lateral wear plate (HD-L) to increase resistance against high levels of impacts and abrasion.
