New cast lip options in size TM1 with inside bucket widths of 122” and 144”
New cast lip options in size TM1 with inside bucket widths of 122” and 144”
30/01/2024
With the introduction of two new cast lip options in size TM1, the MTG CAST LIPS / TERRA product family is growing to a total of 12 and is further expanding the TERRA application possibilities for smaller mining excavators with an operating weight of 250-400 t. The two new TERRA references 1MT1CL122 TERRA and 1MT1CL144 TERRA have inside bucket widths of 122'' / 3.100 mm and 144” / 3.650 mm, suitable for machine models such as the EX3600* or CAT6040*.
While the smaller TM1-122 has 5 positions, the slightly wider option TM1-144 consists of 6 positions. Both can be equipped with the 2-part TWINMET tooth system in size 1.
Have a look at our TERRA website to discover all the benefits of our cast lips. Higher productivity, reduced operational costs, longer operational times, and shorter downtime are compelling reasons to change and convince yourself of our TERRA cast lips. Additionally, the suitable GET package consisting of TWINMET and PROMET provides incomparable bucket protection and digging performance.
Now available for orders!
The new TERRA cast lip options TM1-122 and TM1-144, including its complete wear packages based on TWINMET and PROMET, are ready to be ordered through MTG’s customer service team. In addition, our technical service team will be happy to assist you with the GET choice and lip configuration. Contact us for further information!
| Size | Inside Bucket Width | Reference | Number of Positions | Machine Category | Machine Examples |
|---|---|---|---|---|---|
| TM1 | 116" / 2.950 mm | 1MT1CL116 TERRA | 5 | 250-400 t | HITACHI* EX3600 (FS) KOMATSU* PC4000 (FS) CATERPILLAR* 6040 (BH/FS) |
 122" / 3.100 mm (NEW) |
1MT1CL122 TERRA | 5 | |||
| 136" / 3.450 mm | 1MT1CL136 TERRA | 5 | |||
| 140" / 3.560 mm | 1MT1CL140 TERRA | 6 | |||
 144" / 3.650 mm (NEW) |
1MT1CL144 TERRA | 6 | |||
| TM5/4 TM5/6 |
148" / 3.760 mm | 1MT5CL148 TERRA | 5 | 450-700 t | HITACHI* EX5600-6 (BH) KOMATSU* PC5500-6 (BH) CATERPILLAR* 6050 / 6060 (FS) KOMATSU* PC7000 (FS) |
| 163" / 4.150 mm | 1MT5CL163 TERRA | 5 | 450-700 t | ||
| 169" / 4.300 mm | 1MT5CL169 TERRA | 6 | 450-700 t | ||
| 185" / 4.700 mm | 1MT5CL185 TERRA | 6 | 450-700 t | ||
| 201" / 5.100 mm | 1MT5CL201 TERRA | 6 | 450-700 t | ||
| TM7/4 TM7/6 |
169" / 4.300 mm | 1MT7CL169 TERRA | 5 | 650-1.000 t | HITACHI* EX8000-6 (BH/FS) KOMATSU* PC8000 (BH/FS) CATERPILLAR* 6090 (FS) |
| 201" / 5.100 mm | 1MT7CL201 TERRA | 6 | 650-1.000 t |
(*) METALOGENIA, S.A. is not the proprietor of the brands identified by an asterisk, and these are mentioned herein solely for the purposes of identifying the destination of the products, there is no existing link between the company and the legitimate proprietors of any such brands.
-

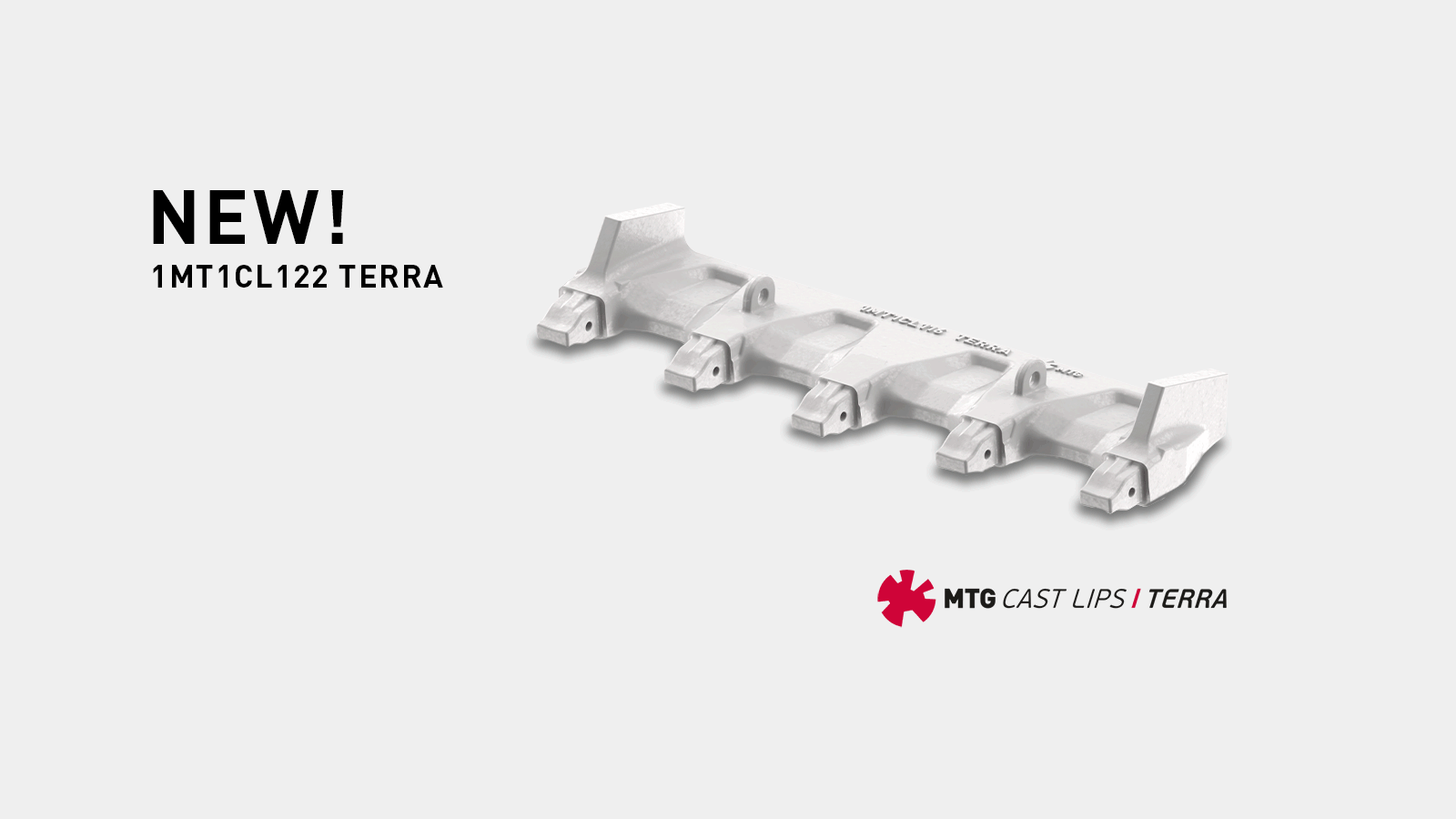

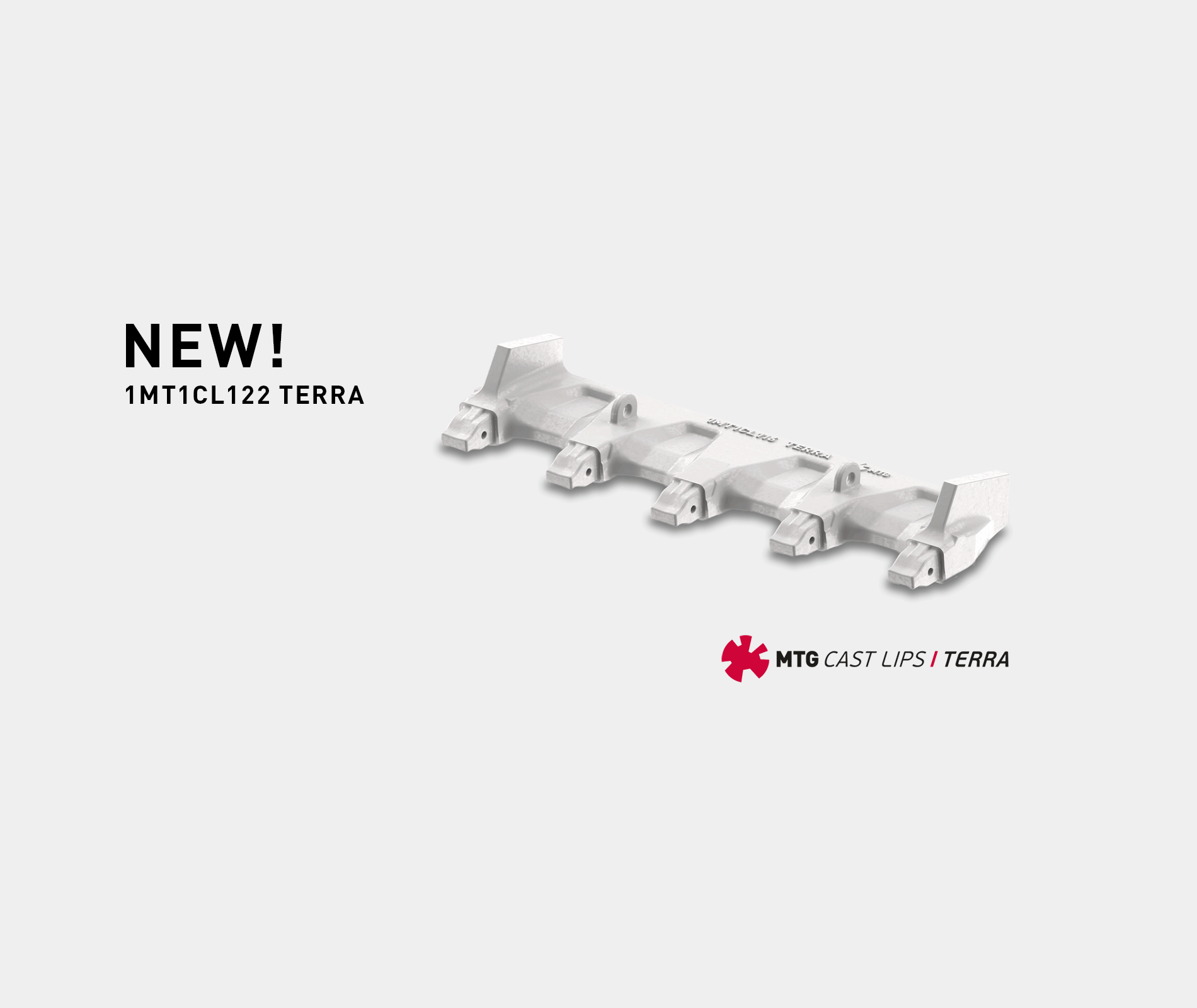

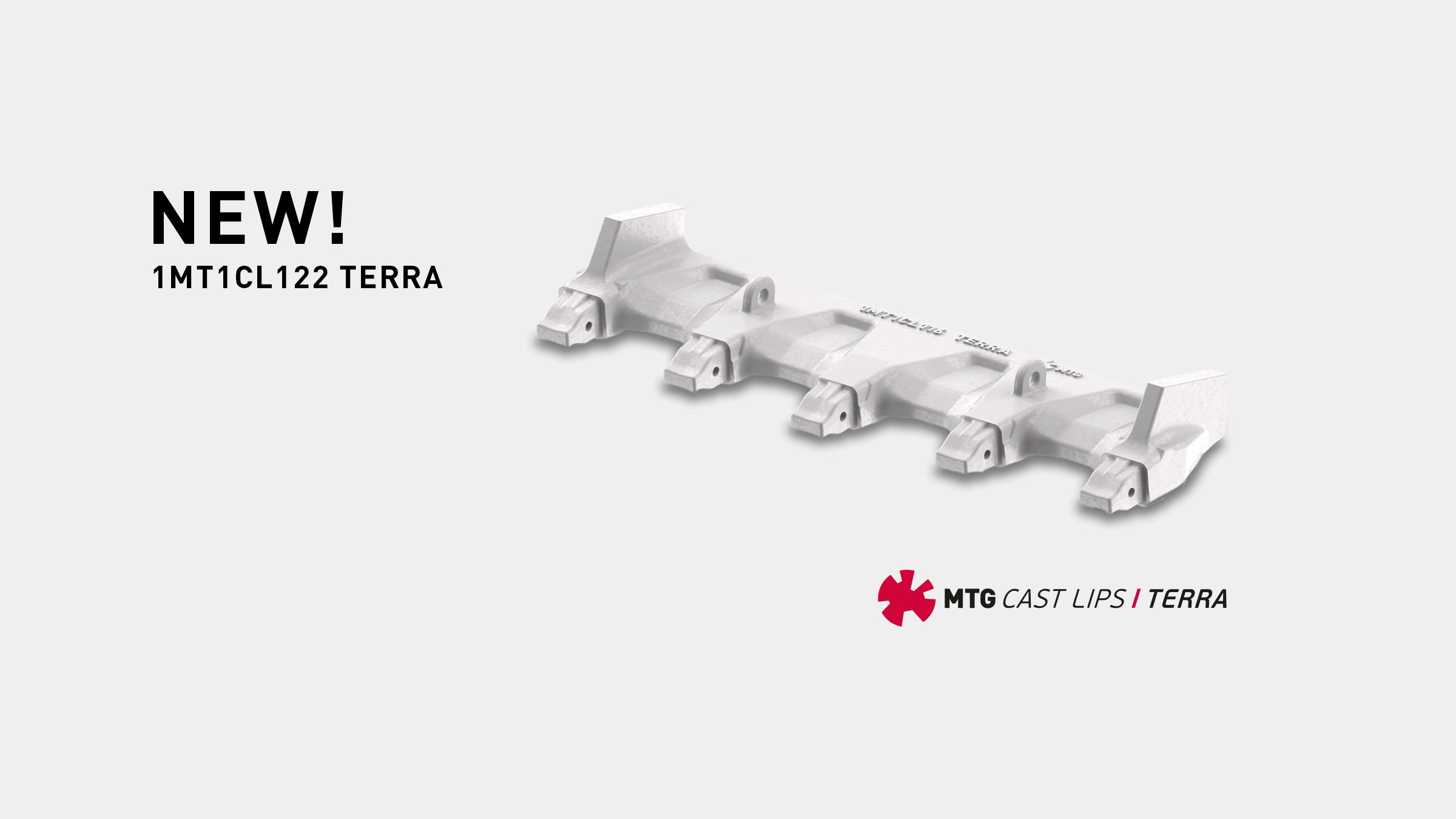

New TERRA cast lip option in size TM1 with an inside bucket width of 122” / 3.100 mm.
-

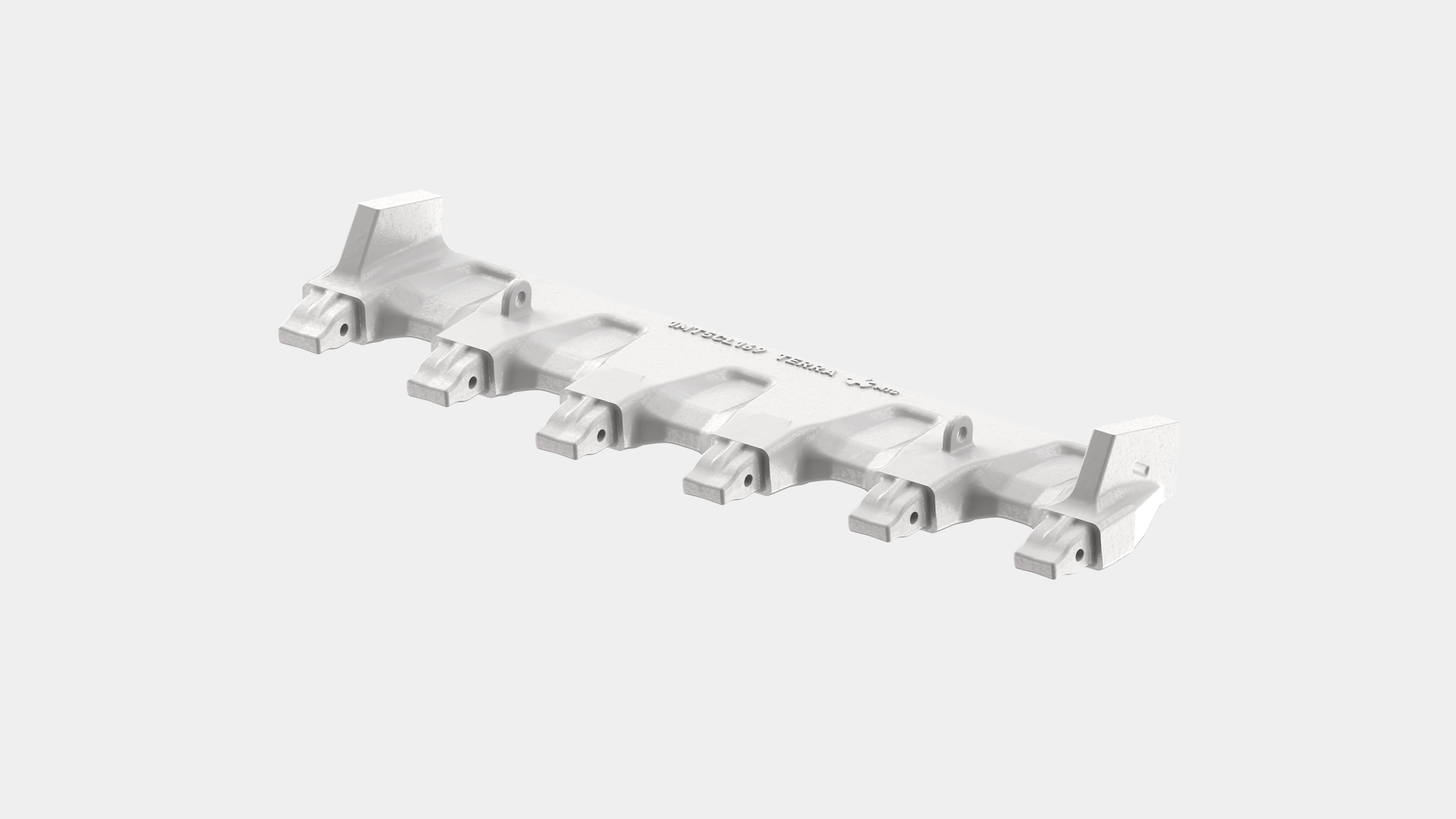

New TERRA cast lip option in size TM1 with an inside bucket width of 144” / 3.650 mm.
-

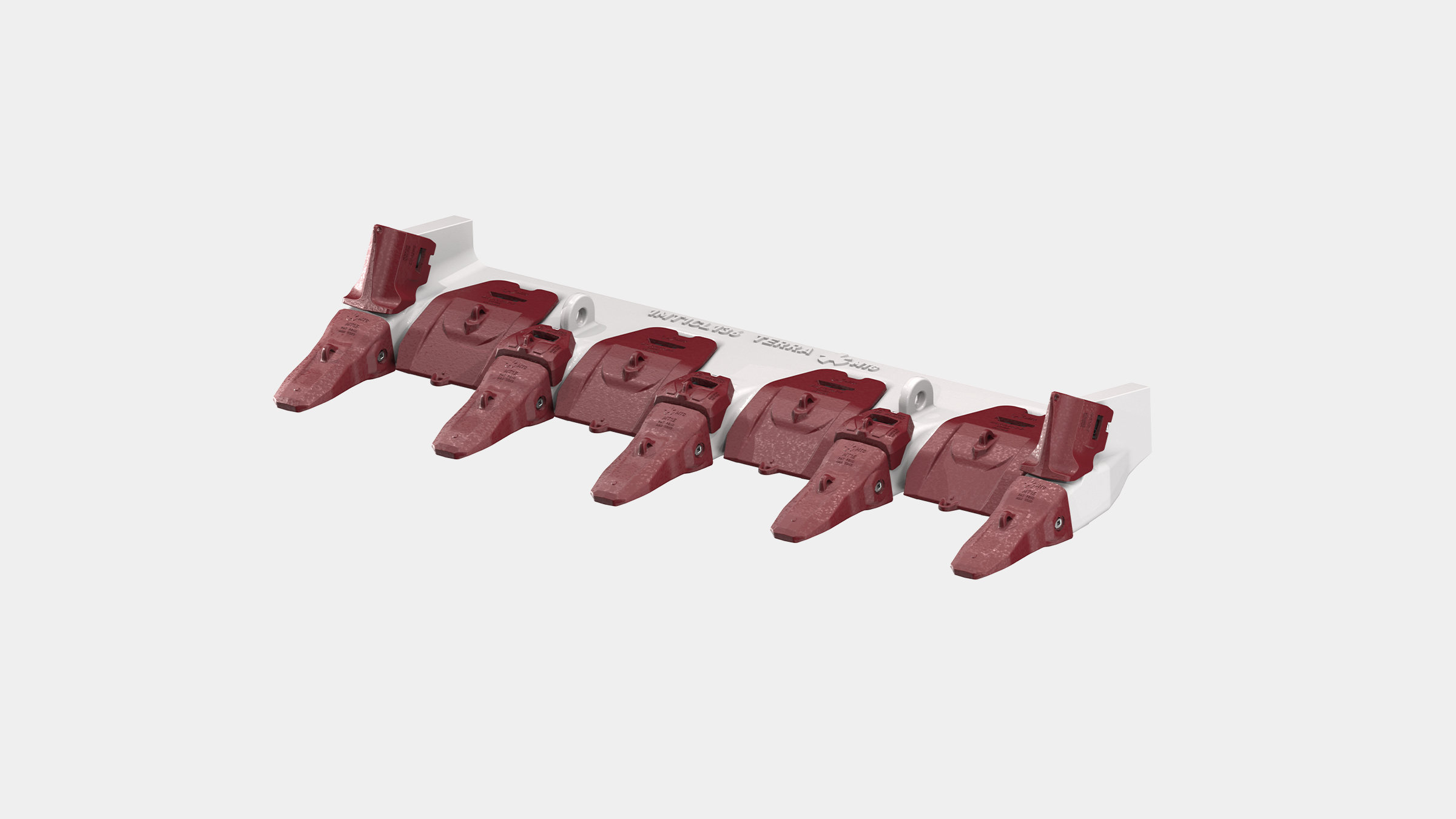

The TERRA cast lip fully equipped with TWINMET teeth and PROMET lip and wing shrouds.
